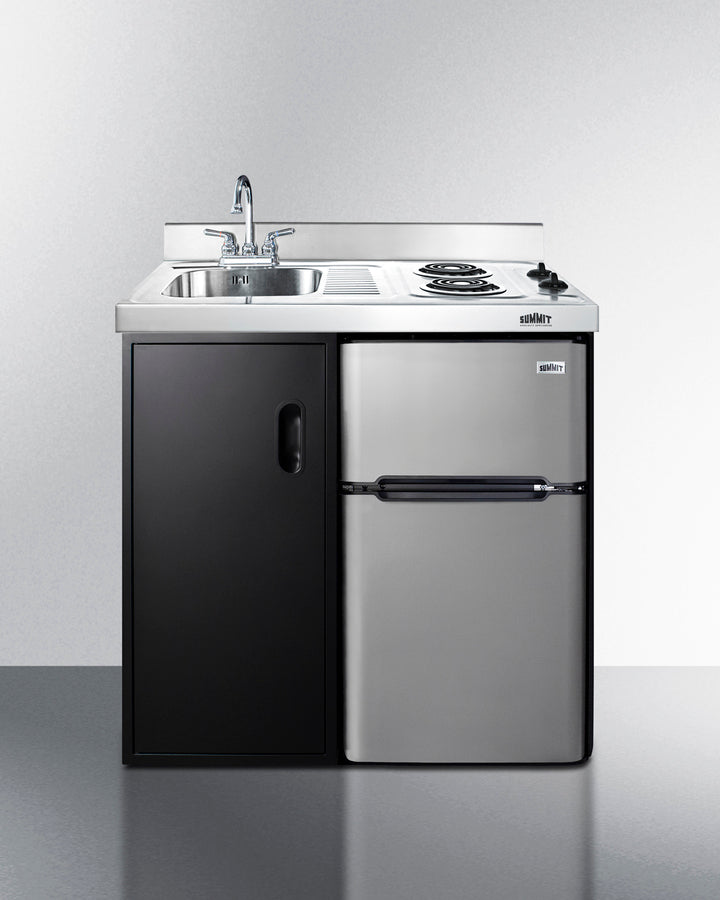

Summit 36" Wide All-In-One Kitchenette - CK36EL
Summit brings true convenience to smaller spaces with all-in-one combination kitchenettes. Available in a variety of sizes and finishes, these units come fully featured with everything you need for the home food-service experience, including a 2-burner cooktop, sink, storage cabinet, and refrigerator with a freezer compartment.
The CK36EL is a 36" wide kitchenette with an easy-fitting 24" depth. Its black exterior brings a modern look to efficiency spaces, with added touches of stainless steel on the kitchenette work surface and refrigerator doors. This unit includes a built-in 115V radiant cooktop with a rear 500W and front 900W coil element to accommodate a range of heating options. The power cord comes pre-installed for easy setup. The left side of the kitchenette features a compact sink with ready-to-use faucet. A cabinet with a removable shelf is located below the sink for dry storage.

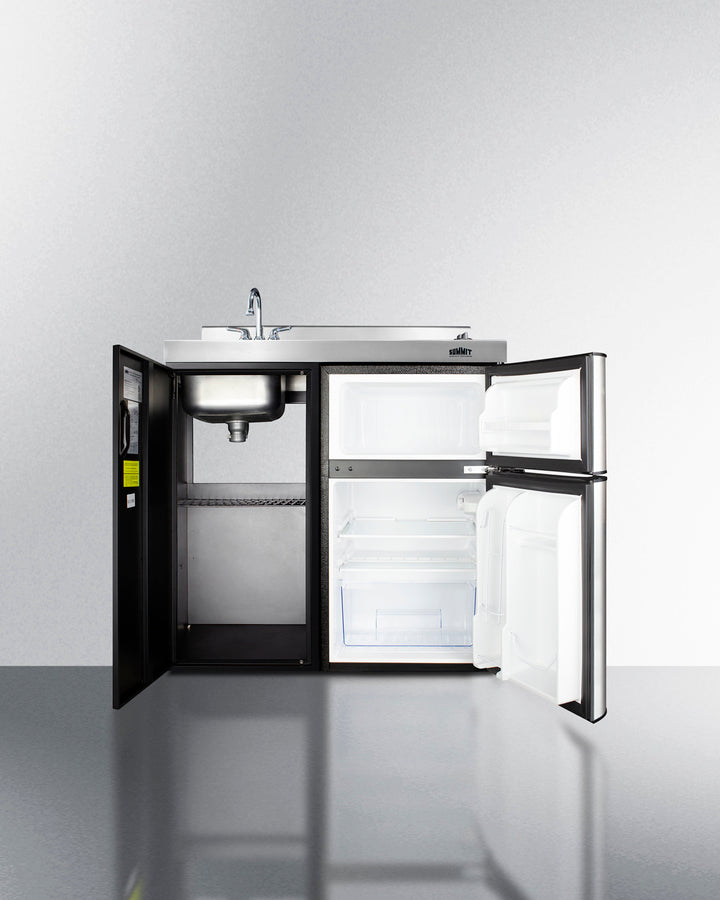

Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The CK36EL includes the two-door, ENERGY STAR certified CP34BSS, with 3.2 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This model also includes an adjustable glass shelf, door storage, and a crisper.
The CK36EL is packaged and shipped in one box. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of a low maintenance, fully-featured compact kitchenette. Additional choices are available with smooth-top cooktops, and in 30", 39", 48", and 60" wide sizes.
Features
- Complete one-piece kitchenette: All-in-one kitchen is built with virtually everything you need for meal preparation
- 2-door refrigerator-freezer included: CP34BSS is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified refrigerator includes adjustable glass shelves, door storage, and a freezer compartment
- Sink and faucet: Stainless steel sink with ready-to-use faucet included
- 2-burner cooktop: Includes two coil elements, with a rear 500W burner and front 900W burner to accommodate a range of heating options
- 115V operation with pre-installed cords: Both the cooktop (12 amps) and refrigerator (1.1 amps) include 3-pronged cords for easy setup
- Push-to-turn knobs: Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents
- Indicator lights: Operating indicators light up to show which burner is in use
- Black and stainless steel exterior finish: Modern design with a jet black powder-coated metal cabinet, stainless steel surface, and stainless steel refrigerator doors
- One piece stainless steel countertop: Easy-to-clean surface with a professional look
- Storage compartment: Convenient lower cabinet with adjustable shelf lets you store dry goods
- Ships fully assembled in one box: Kitchenette is shipped in one piece, with reinforced packaging for added protection
- Stainless steel backguard: Includes a 4" high backguard to complete the look and offer added protection to your walls
- Reversible doors: User-reversible door swings on the refrigerator-freezer for added flexibility
- Optional storage cabinet: Add more storage convenience with Summit wall cabinets, 12" or 18" wide choices with powder-coated metal construction in white or black finishes
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 40.0" (102 cm)
- Width: 36.13" (92 cm)
- Depth: 23.63" (60 cm)
- Depth: with Handle 24.63" (63 cm)
- Depth with door at 90°: 41.88" (106 cm)
- Capacity: 3.2 cu.ft. (91 L)
- Defrost Type: Cycle
- Door: Black/SS
- Cabinet: Black
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Amps: 13.1
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 111.0 lbs. (50 kg)
- Shipping Weight: 116.0 lbs. (53 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101033679
Kitchenette
- Refrigerator Included: CP34BSS
- Refrigerator Door Swing: RHD
- Reversible: Yes
- Adjustable Shelves: Yes
- Shelf Type: Glass
- Shelf Qty: 1
- Crisper Qty: 1
- Crisper Finish: Transparent
- Crisper Cover: Glass
- Full Door Shelves: 2
- Can Storage: Yes
- Thermostat Type: Dial
- Interior Light: Yes
- Refrigerant Type: R600a
- Refrigerant Amount: 1.16 oz.
- High Side PSI: 250.0
- Low Side PSI: 88.0
- Cooking Type: Coil Cooktop
- Number of Burners: 2
- Cooktop Controls: Dial
- Interior Height 1: 18.5" (47 cm)
- Interior Width 1: 15.75" (40 cm)
- Interior Depth 1: 15.0" (38 cm)
- Interior Height 2: 7.5" (19 cm)
- Interior Width 2: 14.0" (36 cm)
- Interior Depth 2: 14.0" (36 cm)
- Sink Height: 7.25" (18 cm)
- Sink Width: 12.0" (30 cm)
- Sink Depth: 12.0" (30 cm)
Manufacturer Resources
- Brochure w/ Drawings
- Technical Drawing (.dwg)
- Use and Care
- Use and Care (Refrigerator)
- Energy Guides
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
