Summit 24" Wide Dual Zone Wine Cellar - SWC1966B
Summit offers a unique selection of built-in capable full-sized wine cellars for convenient wine storage in the home.
The SWC1966B is a 24" wide dual zone wine cellar designed to display your wine collection under the proper conditions. The evenly divided upper zone is reserved for white and sparkling wine, while the lower zone features a warmer temperature range to best preserve reds. It comes with a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use.
Sized just under 27" deep, this unit has a sealed back and right-angle plug for added depth savings. The exterior features a double pane tempered glass door with stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal for efficient cooling.

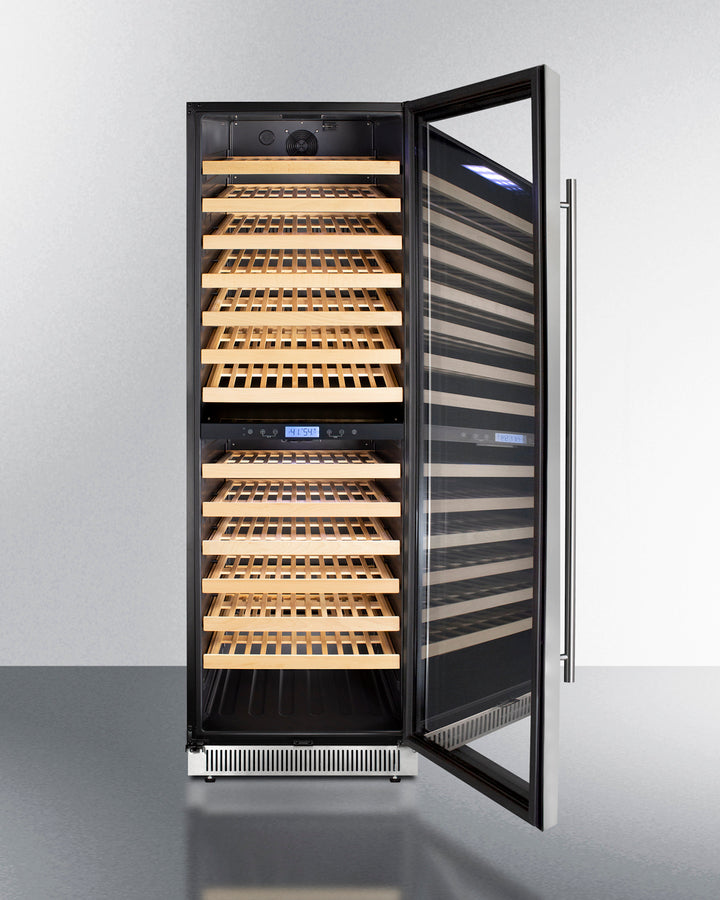

Inside, the SWC1966B includes 13 wooden shelves that slide out 50% for easy loading and unloading. Optimal storage capacity accommodates up to 162 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWC1966B can hold up to 146 bottles.
Two white LED lights positioned at the top of each zone attractively illuminate your collection for a stylish display, while the digital control panel makes it easy to manage the temperature. An internal fan ensures both zones are properly chilled. A charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range.
With its convenient size, advanced features, and elegant design, the SWC1966B is the perfect addition to any home bar or kitchen seeking full capacity wine storage with a modern presentation.
Features
- Built-in capable: Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)
- Stainless steel trimmed glass door: Provides a full display of the interior, with two levels of glass for added protection
- Two temperature zones: Chill white wine in the upper zone while preserving your reds at a warmer temperature below
- Digital thermostat: Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit
- Even storage: The upper and lower zones are evenly split for a symmetrical look
- Slide-out wooden shelving: 13 shelves slide out 50% for easier loading and optimum capacity
- Versatile storage: Interior can hold up to 162 standard 750ml Bordeaux style bottles (19 bottles stacked on the upper shelf, 11 bottles per middle 12 shelves, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 146 bottles (11 on the upper shelf, 8 onthe top shelf of the lower zone, 11 on each of the other 11 shelves, and 6 on the slotted floor)
- Professional handle: 37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
- LED lighting: Two LED lights at the top of each zone provide an attractive and energy-efficient illumination of your collection with a gentle white hue
- Factory-installed lock: Keyed lock secures both zones (2 keys included)
- Wide temperature range: Upper zone: 41-54°F ideal for chilling white and sparkling wine; Lower zone: 54-65°F for holding reds at a warmer temperature
- Stainless steel kickplate: Allows for front ventilation in an elegant design
- Charcoal filtration system: Helps to purify air for an odor-free interior
- High/low temperature alarms: Audibly sounds if the interior rises or falls out of recommended range
- Open door alarm: Alerts if unit door is ajar for more than 5 minutes
- Magnetic door gasket: Ensures a tight seal for energy savings and improved performance
- Sealed back: Flush back allows for a better fit and easier cleanability
- Right angle plug: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Fully finished black cabinet: Allows the unit to be used freestanding
- 100% CFC free: Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
overview
- Height of Cabinet: 69.5" (177 cm)
- Width: 23.63" (60 cm)
- Depth: 26.5" (67 cm)
- Depth with Handle: 28.25" (72 cm)
- Depth with door at 90°: 48.75" (124 cm)
- Bottles: 162 bottles
- Defrost Type: Automatic
- Door: Glass
- Cabinet: Black
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Amps: 2.0
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 200.0 lbs. (91 kg)
- Shipping Weight: 230.0 lbs. (104 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101066349
Wine Cellar
- Number of Zones: 2
- Door Swing: RHD
- Reversible Factory: Reversible
- Shelf Type: Wood
- Shelf Qty: 13
- Thermostat Type: Digital
- Interior Ligh: Yes
- Fan Type: Interior and Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 1.76 oz.
- High Side PSI: 320.0
- Low Side PSI: 120.0
- Interior Height 1: 31.0" (79 cm)
- Interior Width 1: 20.38" (52 cm)
- Interior Depth 1: 21.0" (53 cm)
- Level Legs: 2
- Temperature Range: 41-54°F (upper zone); 54-65°F (lower zone)
- Interior Height 2: 29.75" (76 cm)
- Interior Width 2: 20.38" (52 cm)
- Interior Depth 2: 21.0" (53 cm)
Available Upgrades
Door
- T2F Door Tint
- T4F Door Tint
- T1SF Door Tint
- T3F Door Tint
Exterior
- LHD - Left hand door swing
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
