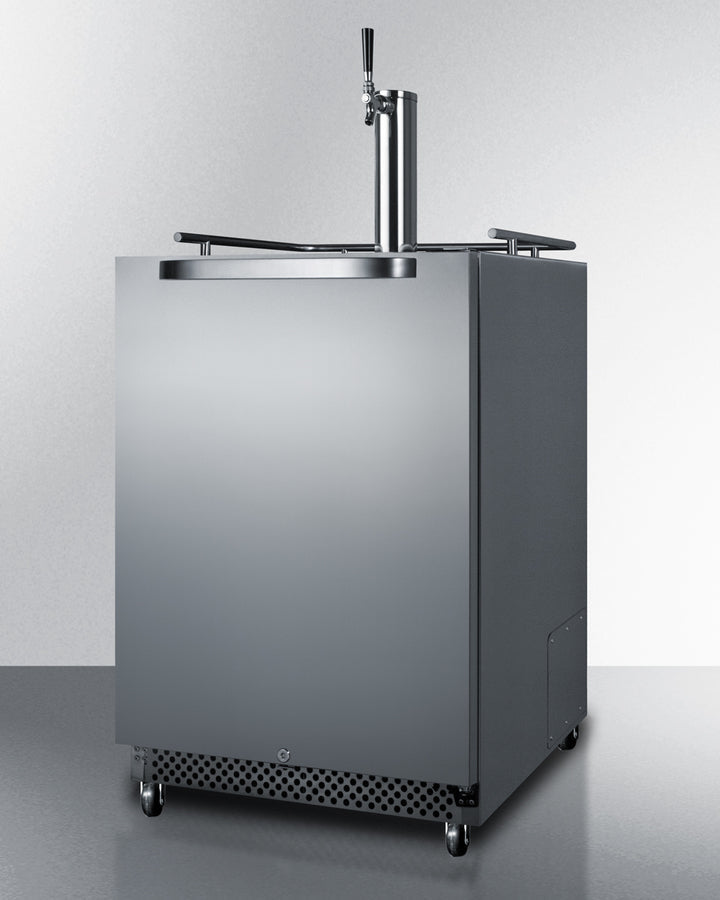

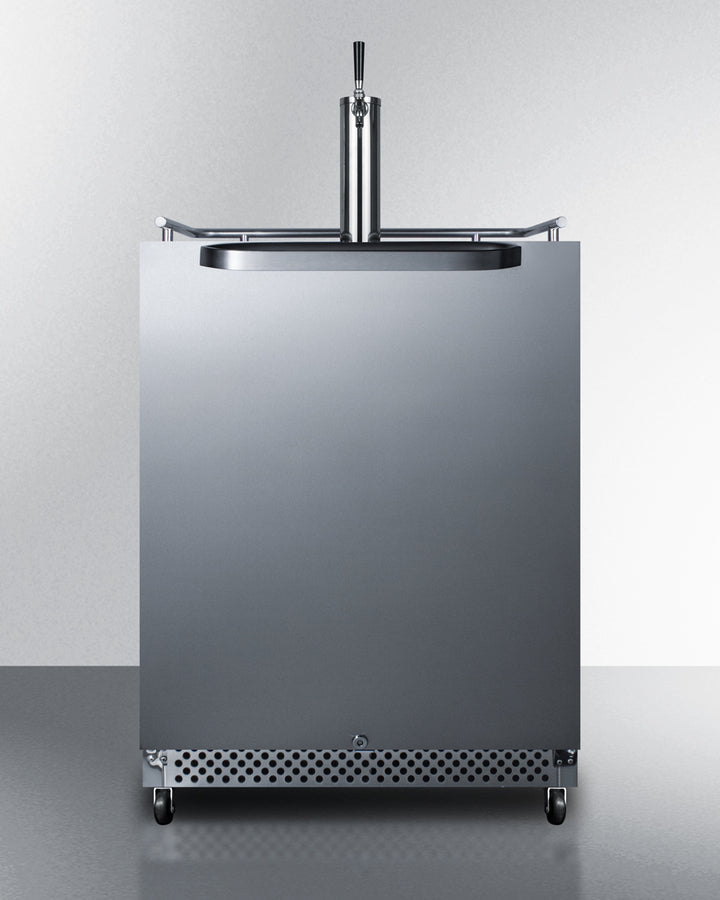

Summit 24" Wide Built-In Outdoor Wine Kegerator - SBC695OSWKD
Summit Commercial brings quality construction and long-lasting reliability to outdoor and indoor settings with the SBC695OS wine dispenser series.
The SBC695OSWKD is a full-sized weatherproof wine kegerator that can be used indoors or outdoors. It is ETL-S listed to NSF-7 standards and meets UL-471 for commercial applications. The cabinet and door are wrapped in 304 grade stainless steel, with a sealed back designed to protect all electrical components from the elements.
This unit features a front-breathing system that allows built-in installation under counters, as well as a fully finished exterior for optional freestanding use. A caster set is included for optional mobility, along with a durable top rail guard. The user-reversible stainless steel door is self-closing to ensure your kegs aren't accidentally exposed to warmer temperature, with an audible alarm that warns if the door is left open for over one minute.
This unit includes a stainless steel kickplate and horizontally mounted handle in a sleek blade shape, ideal for matching many popular styles of grills and cabinetry. A factory-installed front lock offers added security. Inside, the SBC695OSWKD comes with hammered aluminum walls and a stainless steel floor designed to protect the interior when loading heavy kegs.
A digital thermostat lets you set the wine temperature with reliable precision, with a wide range between 32 and 50ºF to keep white wine and rosé properly chilled. A high/low temperature alarm sounds if the unit's interior goes out of safe storage conditions.
We include a complete commercially listed Sankey tap system and draft tower, along with a 5 lb. nitrogen/CO2 tank and regulator. This unit utilizes automatic defrost for low maintenance use. An interior LED light is included to help make the keg setup process more convenient.
With its solid construction, user-friendly features, and attractive design, the SBC695OSWKD is the perfect wine dispenser for indoor or outdoor commercial applications.
Features
- Commercially approved: ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
- Weatherproof design: Solid construction allows placement in the outdoors
- Built-in capable: Front-breathing design allows fully recessed installation under counters
- Full-sized wine dispenser: Large interior can accept a full half barrel keg, two slim quarter kegs, or up to three sixth barrel or Cornelius style kegs
- Complete tap kit: Ships with a complete wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg
- Nitrogen/CO2 tank included: Canister is best suited for a 75% nitrogen/25% CO2 mixture
- Stainless steel exterior: Door and cabinet are wrapped in 304 grade stainless steel for lasting durability in the outdoors

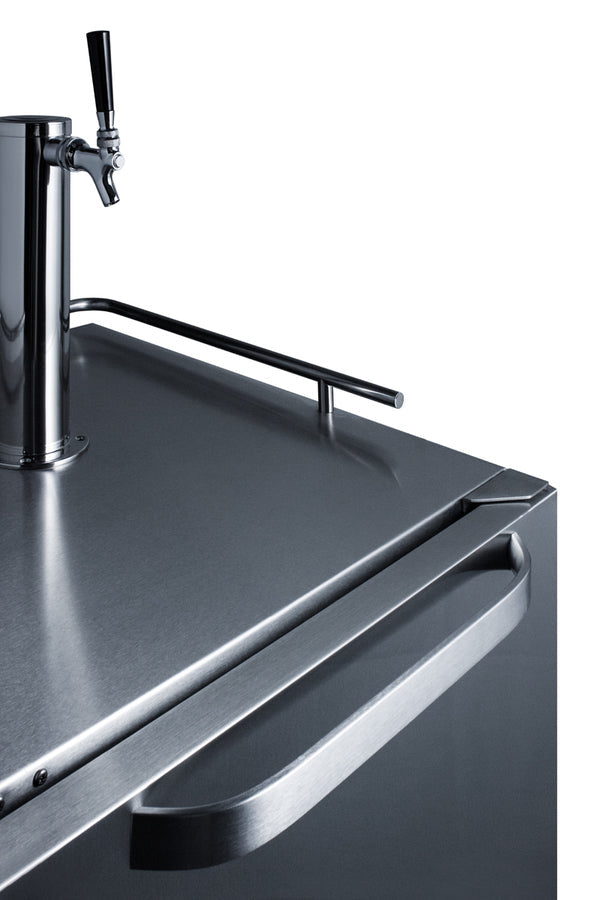

- Professional handle: Blade style handle in brushed stainless steel matches many popular styles of cabinetry and grill details
- Digital thermostat: Electronic controls ensure easy temperature management for optimum white wine and rosé storage, with a readout viewable in Celsius or Fahrenheit
- Automatic defrost: No-frost operation for minimum user maintenance
- Factory installed lock: Keyed lock for added security (2 keys included)
- Reversible door: User-reversible door swing allows you to easily adjust to better accommodate your setting
- Self-closing door: Closing mechanism helps to ensure the door isn't left open to expose kegs to ambient temperature
- Casters included (ship unassembled): Sturdy caster set lets you convert the dispenser for mobile use
- Stainless steel guard rail: Durable railing makes it easier to neaten service

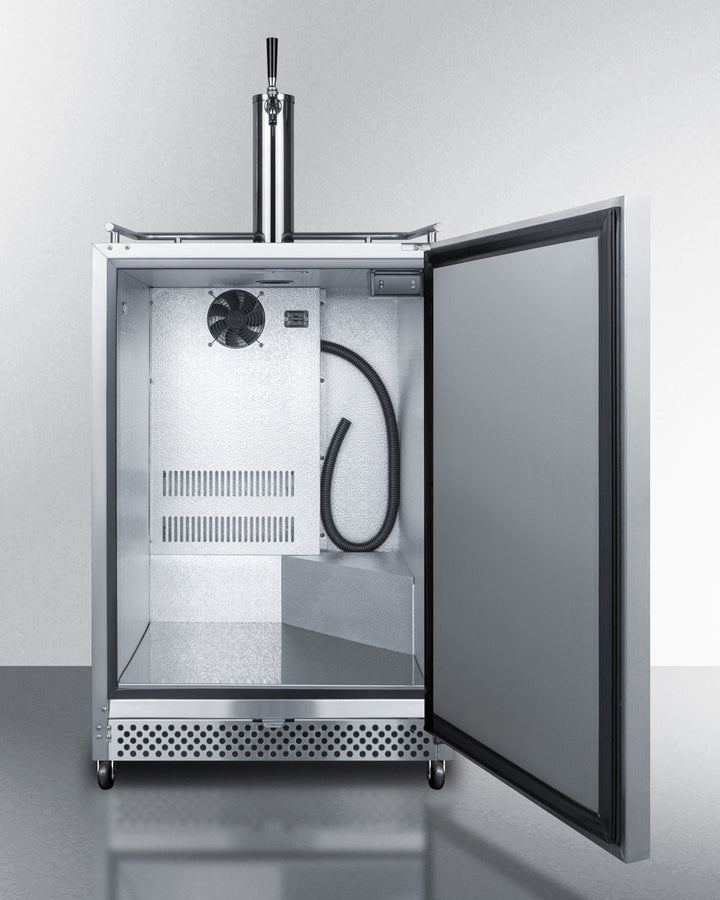

- Hammered aluminum interior: Added durability for long-lasting use
- Stainless steel floor cover: Interior includes steel cover to protect the floor when loading kegs
- Open door alarm: Alarm sounds if the door is left open for more than 60 seconds
- High/low temperature alarm: Audible alarm sounds if the unit goes out of range
- LED lighting: Interior LED lighting automatically illuminates when the door is opened, making it easier to set up your keg
- Sealed back: Space saving design with easier cleanability and added protection from the elements
- Fully finished cabinet: Allows the unit to be used freestanding
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specification
Overview
- Height of Cabinet: 34.25" (87 cm)
- Width: 23.75" (60 cm)
- Depth: 25.0" (64 cm)
- Depth with Handle: 26.88" (68 cm)
- Depth with door at 90°: 47.75" (121 cm)
- Capacity: 6.04 cu.ft. (171 L)
- Defrost Type: Automatic
- Door: Stainless Steel
- Cabinet: Stainless Steel
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Sanitation: ETL-S
- Amps: 1.3
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 108.0 lbs. (49 kg)
- Shipping Weight: 113.0 lbs. (51 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101060040
Kegerator
- Door Swing: RHD
- Reversible: Yes
- Tap Kit: Yes
- Height with Tap: 50.38" (128 cm)
- Number of Taps: 1
- Thermostat Type: Digital
- Interior Light: Yes
- Fan Type: Interior and Exterior
- Refrigerant: R600a
- Refrigerant Amount: 1.76 oz.
- High Side PSI: 220.0
- Low Side PSI: 43.0
- Inter Height: 27.0" (69 cm)
- Interior Width: 20.38" (52 cm)
- Interior Depth: 21.25" (54 cm)
- Compressor Step Height: 5.5" (14 cm)
- Compressor Step Width: 9.63" (24 cm)
- Compressor Step Depth: 2.5" (6 cm)
- Wheel Qty: 4
- Surface: Stainless Steel
- Temperature Range: 32º to 50ºF
Available Upgrades
Exterior
- LHD - Left hand door swing
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
