Summit 24" Wide Built-In Kegerator - SBC635MBINKDPL
Summit Appliance offers a versatile line of full-sized built-in beer dispensers designed for low maintenance storage in the style of your choice.

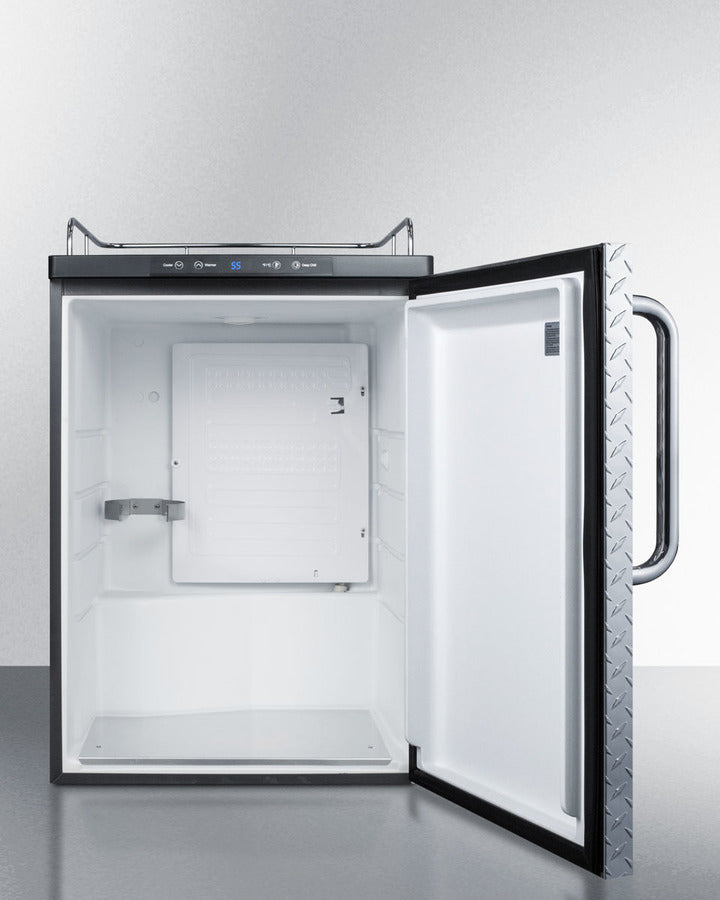

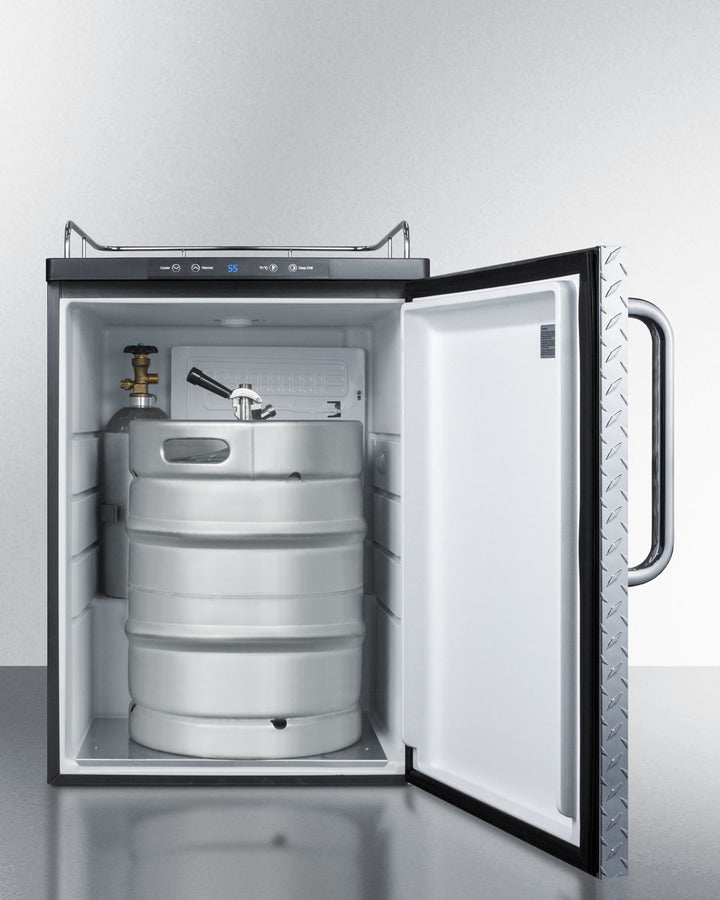

The SBC635MBINKDPL features a large interior that can hold a full half, quarter, 1/6 or mini keg. No tapping equipment is included, allowing 'do-it-yourselfers' to customize the unit with their own system. It features a front-breathing design for built-in installation under counters.

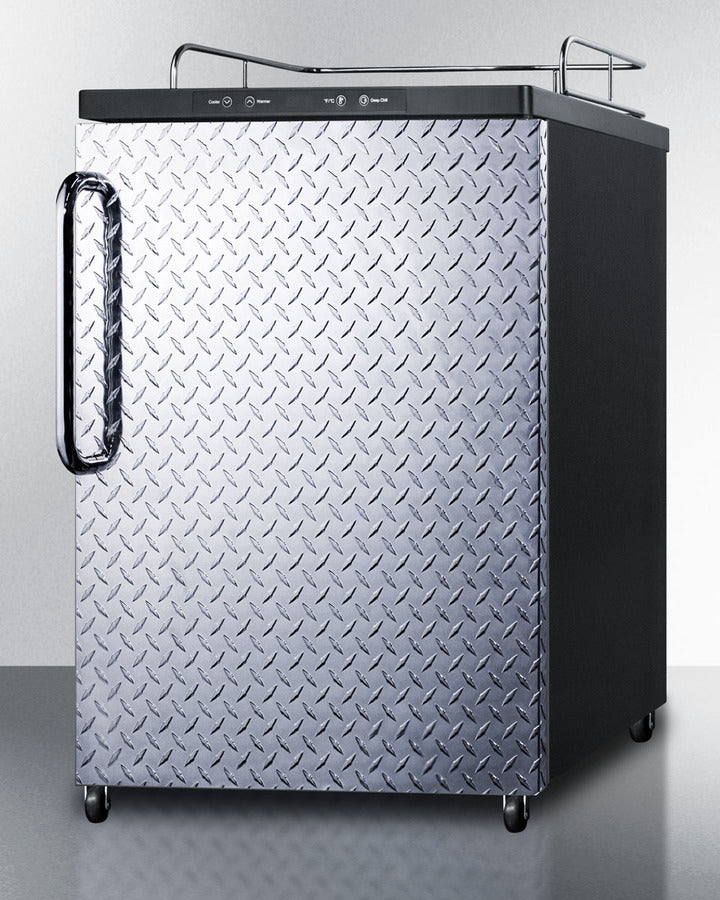

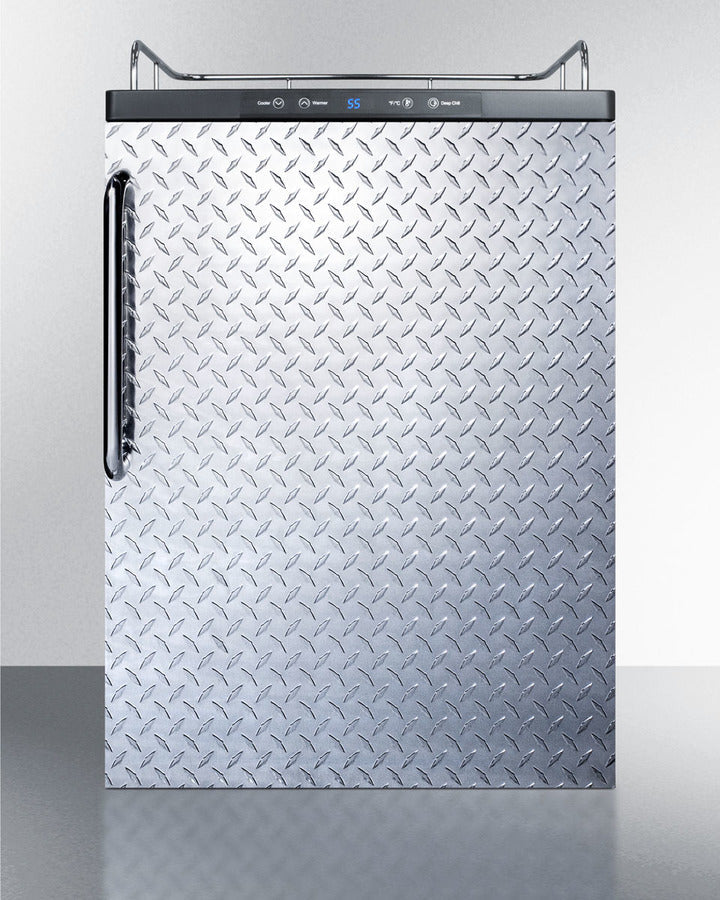

The aluminum wrapped door comes in a unique textured diamond plate design and polished towel bar handle to create an industrial look. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. The user-reversible door swing makes it easy to accommodate any location’s setup.
This unit is height adjustable from 33 1/2" to 34" to best fit your under counter space. Please note that the door does not open in its own radius. When planning your cutout, if the unit is mounted against a wall or flush under cabinetry, you will need between 25 and 25 1/4" width for proper ventilation. Automatic defrost operation ensures minimum user maintenance inside the 5.7 cu.ft. interior.
A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. The floor is reinforced with a steel cover for added durability when loading kegs.
For more style options, browse the full SBC635MBI Series.
Features
- Full-sized beer dispenser: Large 5.6 cu.ft. interior can accept a full half barrel keg, two 1/6 barrel kegs, or a pony keg
- Built-in capable: Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require extra space due to the door design. Width should be 25" to 25 1/4". For more information, see the user manual
- NO TAP KIT: Install your own tapping equipment for a customized beer cooler
- Digital thermostat: Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
- Ideal beer temperature: Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving temperature
- Automatic defrost: Reduced maintenance with auto defrost system
- Diamond plate door: Textured diamond plate finish in wrapped aluminum creates a unique industrial look
- Professional towel bar handle: Curved handle in polished stainless steel completes the look
- Fully finished black cabinet: Allows the unit to be used freestanding
- Casters included (ship unassembled): To make the beer dispenser portable, install this set of 2 1/2" high locking casters
- Top guard rail (ships unassembled): Attractive chrome guard rail helps to reduce spills and neaten service
- Stainless steel floor cover: Interior includes steel cover to protect the floor when loading kegs
- Drip tray: Removable drip tray catches spills to help contain the mess
- Deep Chill function: Great for getting faster cooling results when loading your first keg
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 33.5" (85 cm)
- Width: 24.0" (61 cm)
- Width with Door Open: 25.25" (64 cm)
- Depth: 25.88" (66 cm)
- Depth with Handle: 27.88" (71 cm)
- Depth with door at 90°: 47.5" (121 cm)
- Capacity: 5.6 cu.ft. (159 L)
- Dishwasher: Standard
- Defrost Type: Automatic
- Door: Diamond Plate
- Cabinet: Black
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Energy Usage/Year: 310.0kWh/year
- Amps: 0.86
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 110.0 lbs. (50 kg)
- Shipping Weight: 115.0 lbs. (52 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101046136
Kegerator
- Door Swing: RHD
- Reversible: Factory Reversible
- Thermostat Type: Digital
- Fan Type: Exterior
- Refrigerant: R600a
- Refrigerant: Amount 1.13 oz.
- High Side PSI: 250.0
- Low Side PSI: 110.0
- Inter Height: 28.0" (71 cm)
- Interior Width: 20.5" (52 cm)
- Interior Depth: 19.0" (48 cm)
- Compressor Step Height: 8.25" (21 cm)
- Level Legs Qty: 4
- Wheel Qty: 4
- Temperature Range: 33º to 50º F
Available Upgrades
Exterior
- Latch - Factory-installed door latch requires manual release to open unit
- LHD - Left hand door swing
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
