Summit 24" Wide Built-In Commercial Beverage Refrigerator With Top Drawer in Stainless Steel - SCR615TDCSS
Summit Commercial manufactures unique refrigeration solutions for convenient storage and display in foodservice applications.

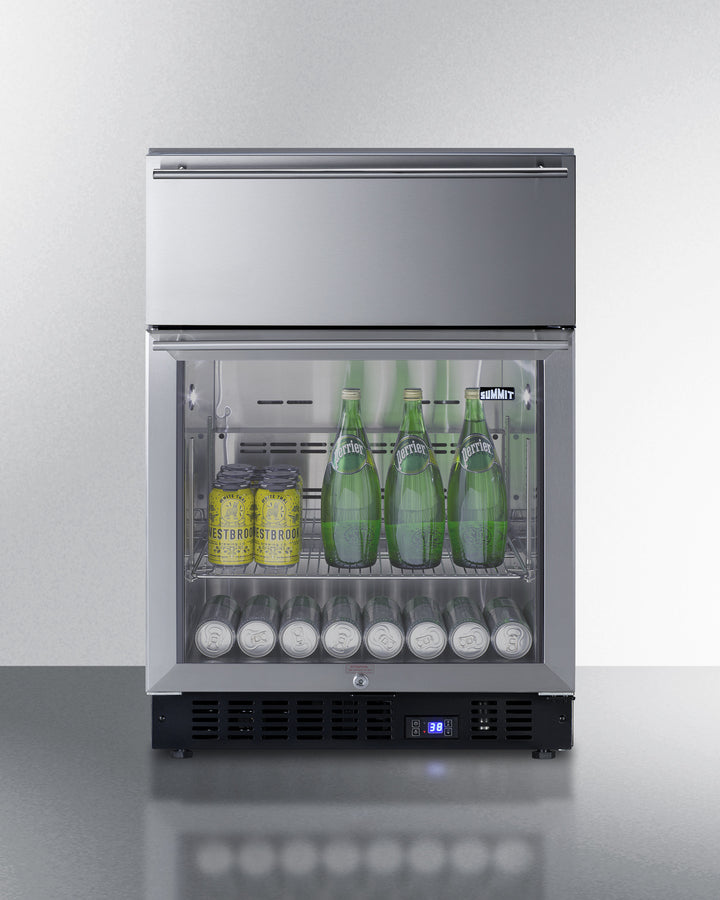

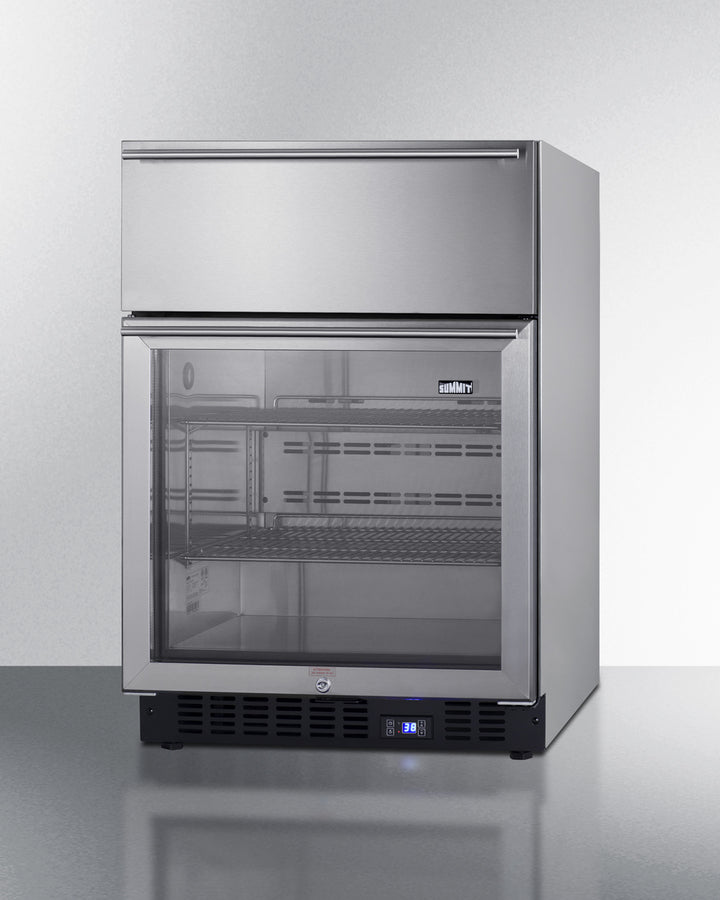

The SCR615TDCSS is an under-counter beverage center designed to optimize back bar storage, with a combination slide-out refrigerated storage drawer and standard front-opening compartment for an easy display of stored items.
This unit is ETL-S listed to NSF-7 for use in commercial settings. It features a front-breathing design that allows built-in installation, while the fully finished stainless steel cabinet also enables freestanding use. Matching stainless steel handles offer a professional look.

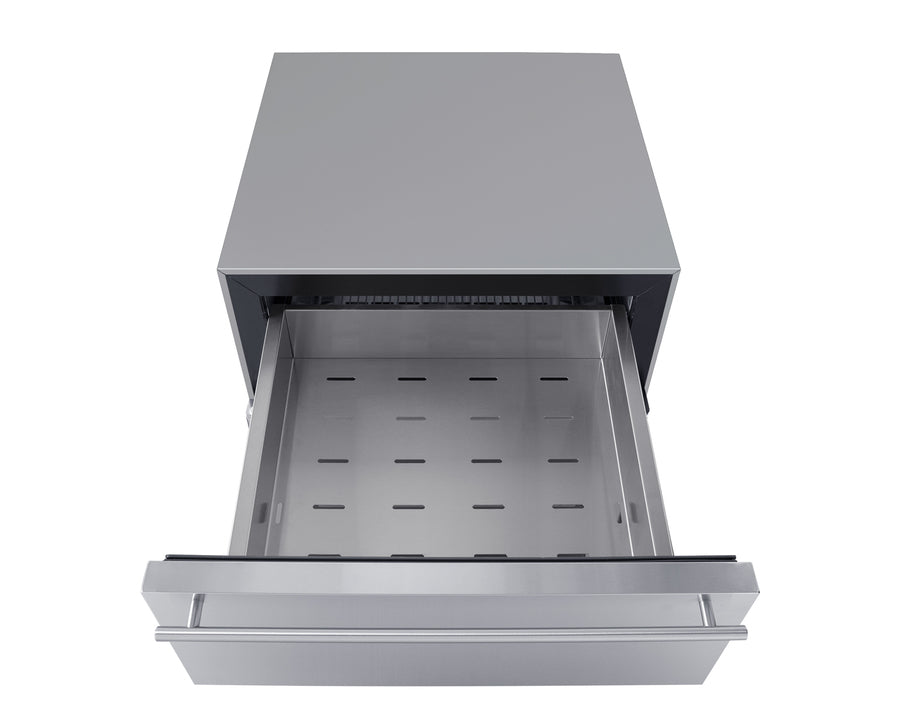

The upper drawer compartment offers over 1 cu.ft. of refrigerated storage with a durable stainless steel exterior and interior. We include a removable stainless steel tray insert with 6 commercial steam table/hotel pans, ideal for making condiments and other refrigerated bar essentials easily accessible to busy foodservice staff.
A removable wine rack is also included to stand bottles up at a slight angle once opened. The rack can be temporarily fixed into place with supplied hardware for added stability. The drawer ceiling includes white LED lighting to keep items in an attractive, energy efficient display.

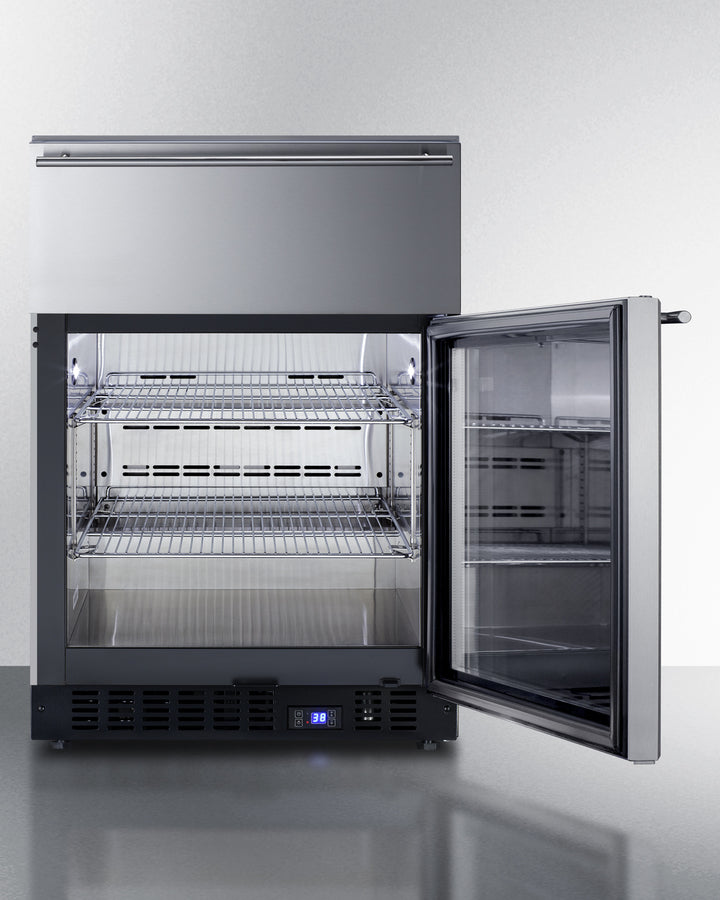

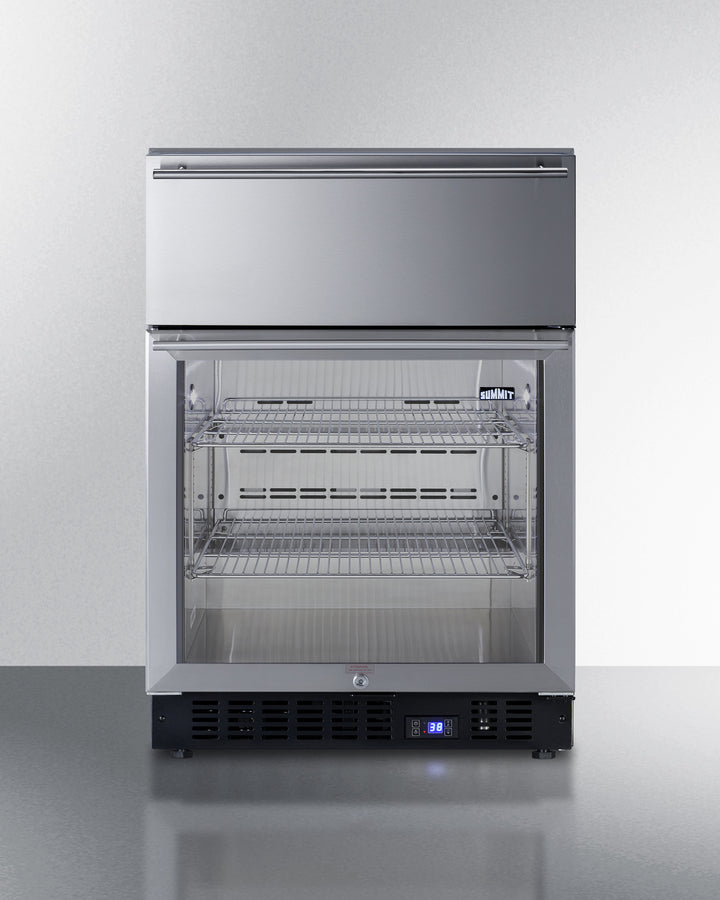

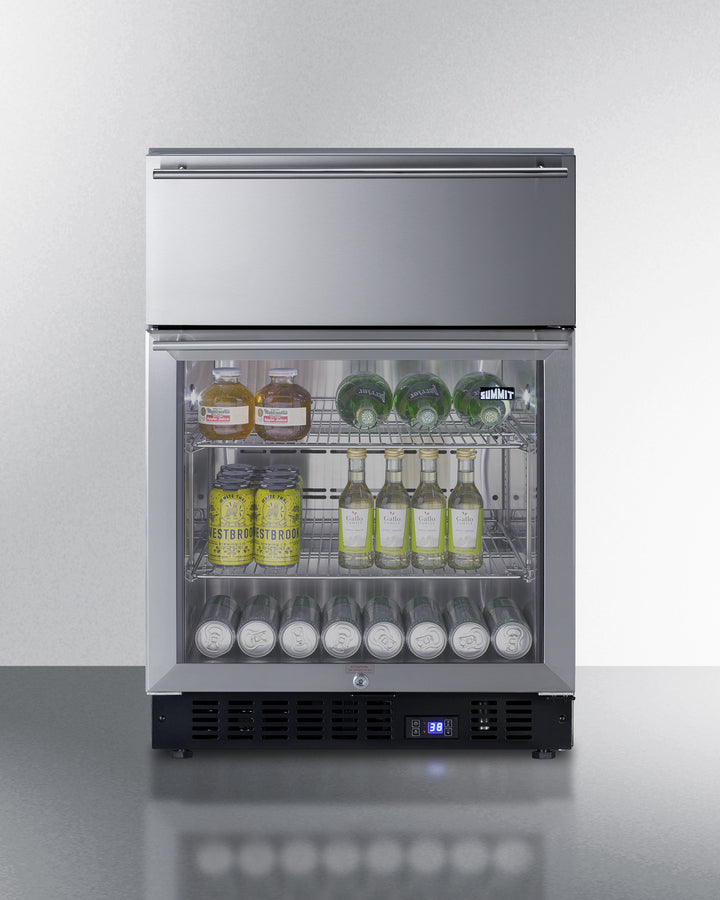

The SCR615TDCSS's lower compartment is designed with a traditional front-opening user-reversible door constructed from stainless steel trim and double pane tempered glass. Four white LED lights illuminate the stainless steel interior to keep beverages and other items in full view. Cantilevered shelving allows you to adjust the two chrome shelves to virtually any position to accommodate a variety of sizes. This compartment includes a factory-installed lock.
For easy temperature management, the SCR615TDCSS is equipped with a digital thermostat with settings viewable in Celsius or Fahrenheit. Internal fan-forced cooling helps to ensure even temperature distribution throughout the 4.76 cu.ft. stainless steel interior, with no-frost operation to help minimize user maintenance.
Additional features include a high/low temperature alarm, open door/drawer alarm, Sabbath mode setting for optional observance, and temperature memory function to recover settings in the event of a power loss.
With its durable construction and unique storage options, the SCR615TDCSS makes a versatile addition for any bar, coffee shop, or similar commercial environment.
Features
- Commercially approved: ETL-S listed to NSF-7 Standards for use in commercial establishments
- Combination drawer/door design: Includes an upper slide-out refrigerator drawer and lower front-opening beverage center behind a reversible glass door
- Built-in capable: Make the best use of space by installing this unit under the counter and flush with other cabinetry
- Double pane tempered glass door: Stainless steel trimmed glass door offers a full display of stored items
- Top drawer: Pull-out top drawer provides additional refrigerated space as needed
- Stainless steel interior: Upper drawer and lower interior walls are constructed from stainless steel for added strength and easy cleanup
- Factory installed lock: Keyed lock for a secure interior on the lower door (2 keys included)
- Digital thermostat: Electronic controls located in the kickplate ensure easy temperature management, with an external readout of Celsius or Fahrenheit
- Automatic defrost: Reduced user maintenance with automatic defrost
- Reversible door: User-reversible door swing allows for more flexibility in placing the unit
- LED lighting: Four LED lights in a gentle white hue illuminate the interior for an attractive presentation
- Cantilevered chrome shelves: Two chrome shelves accommodate a variety of sizes with cantilevered clips to adjust to virtually any position

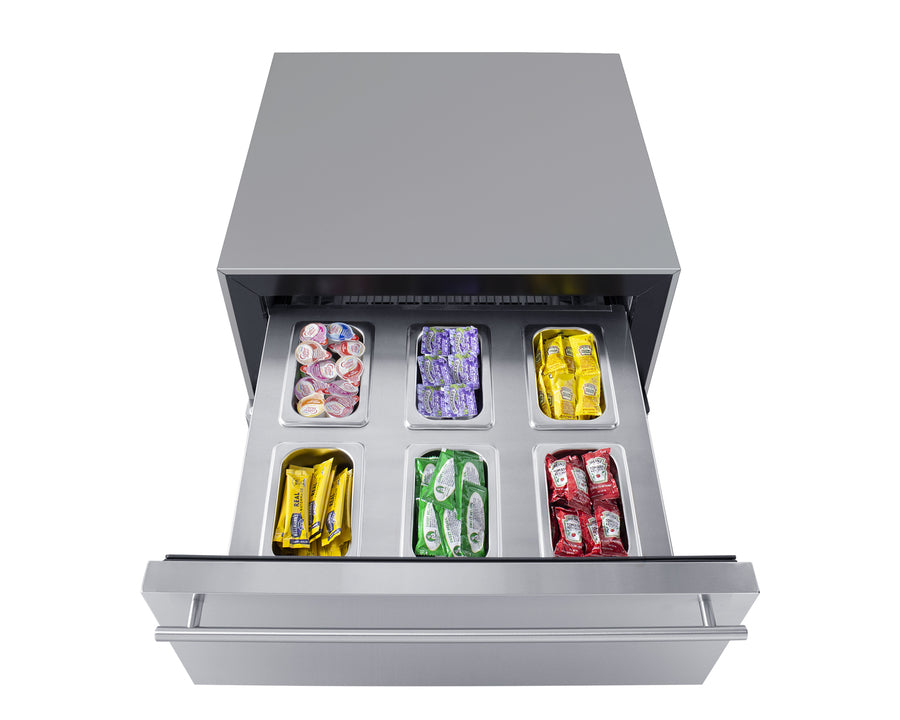

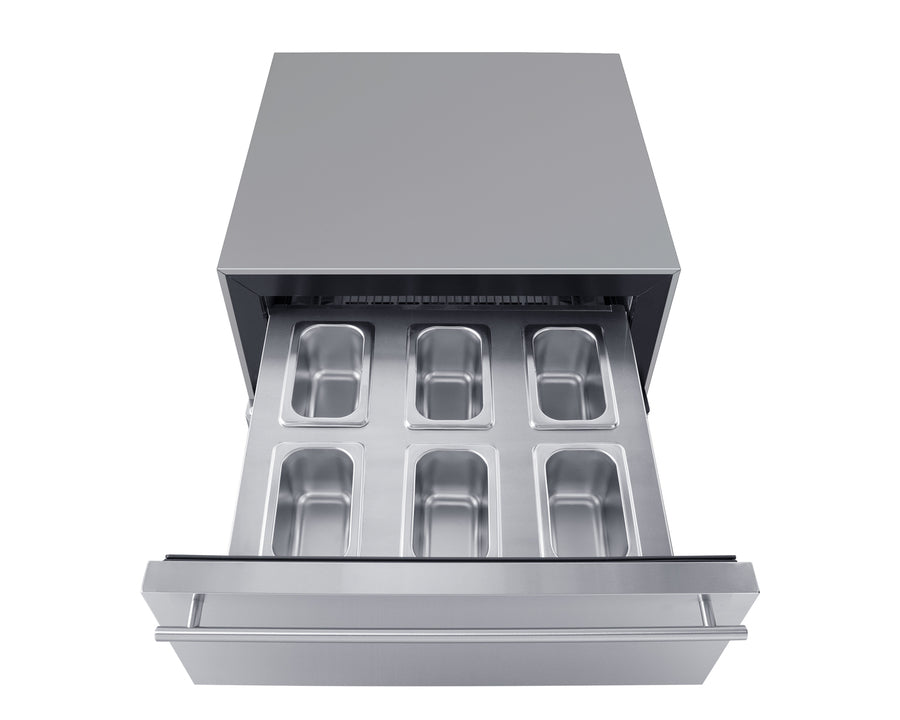

- 6 commercial steam table/hotel pans included: Upper drawer ships with a removable stainless steel tray with 6 cutouts for small steam pans (included) for easy and organized storage of condiments, sealed garnishes, and other popular bar items

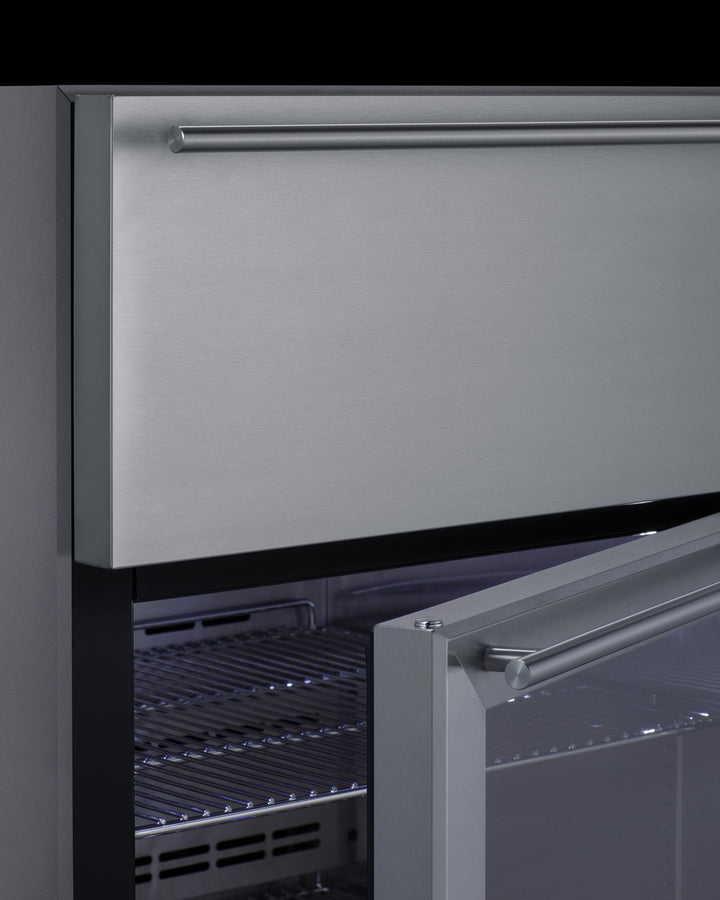

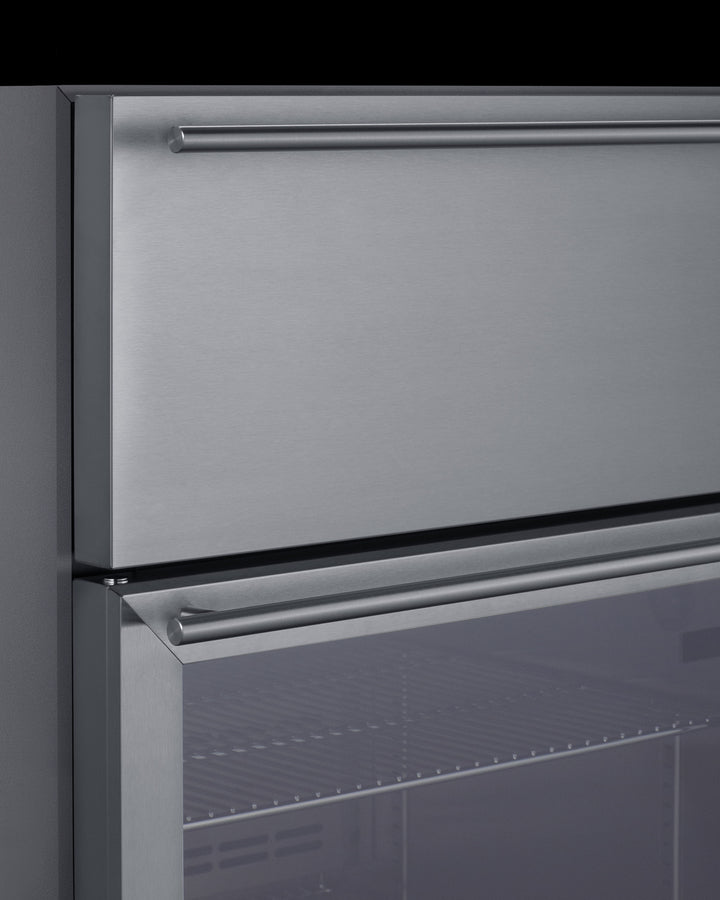

- Professional handles: Sleek stainless steel handles mounted horizontally add an elegant touch to any setting
- Temperature alarm: High temperature alarm sounds if the unit's interior goes out of the recommended range
- Open door/drawer alarm: Audible alarm will sound if the top drawer or lower door is left ajar for longer than one minute
- Temperature Memory Function: Unit will retain its last settings when power is restored in the event of power loss
- Sabbath Mode: Optional setting lets you disable certain electrical functions during periods of religious observance
- Perforated interior: Interior walls are perforated ensuring proper ventilation within the unit
- Fan-forced cooling: Internal fan ensures the interior is evenly cooled from top to bottom
- Sealed back: Space-saving design that offers easier cleanability
- Fully finished stainless steel cabinet: Allows the unit to be used freestanding
- Right angle plug: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 34.0" (86 cm)
- Width: 23.63" (60 cm)
- Depth: 23.5" (60 cm)
- Depth with Handle: 25.0" (64 cm)
- Depth with door at 90°: 45.75" (116 cm)
- Capacity: 4.76 cu.ft. (135 L)
- Defrost Type: Automatic
- Door: Glass/SS
- Cabinet: Stainless Steel
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Sanitation: ETL-S
- Amps: 1.0
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 119.0 lbs. (54 kg)
- Shipping Weight: 129.0 lbs. (59 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101079080
Refrigerator Features
- Sabbath Mode: Yes
- Door Swing: RHD
- Reversible: Yes
- Shelf Type: Chrome
- Shelf Qty: 2
- Bottle Shelves: Yes
- Thermostat Type: Digital
- Fan Type: Interior and Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 1.38oz.
- High Side PSI: 270.0
- Low Side PSI: 105.0
- Level Legs Qty: 2
- Interior Light: Yes
- Interior Drawers: Yes
- Interior Drawers Qty: 1
- Temperature Range: 36°F to 43°F
- Sound Level: 35.2 dB
Drawer Dimensions
- Interior Height: 1 9.0" (23 cm)
- Interior Width: 1 19.38" (49 cm)
- Interior Depth: 1 17.38" (44 cm)
Dimensions
- Interior Height: 17.63" (45 cm)
- Interior Width: 19.38" (49 cm)
- Interior Depth: 17.38" (44 cm)
- Compressor Step Height: 3.75" (10 cm)
- Compressor Step Width: 19.38" (49 cm)
- Compressor Step Depth: 4.63" (12 cm)
Available Upgrades
Exterior
- CAS6 6" casters
- LHD: Left hand door swing
- Latch for door
- DL2B: Factory installed NIST calibrated digital data logger (DDL)
- Extra key
- PH: Probe Hole
Door
- T1 Door Tint
- T2 Door Tint
- T3 Door Tint
- T4 Door Tint
- T1S Door Tint
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
