Summit 24" Wide Built-In Coffee Kegerator ADA Compliant - SBC58BLBIADAIFCMTWIN

Summit 24" Wide Built-In Coffee Kegerator ADA Compliant - SBC58BLBIADAIFCMTWIN

Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial coffee dispensers made in Europe.

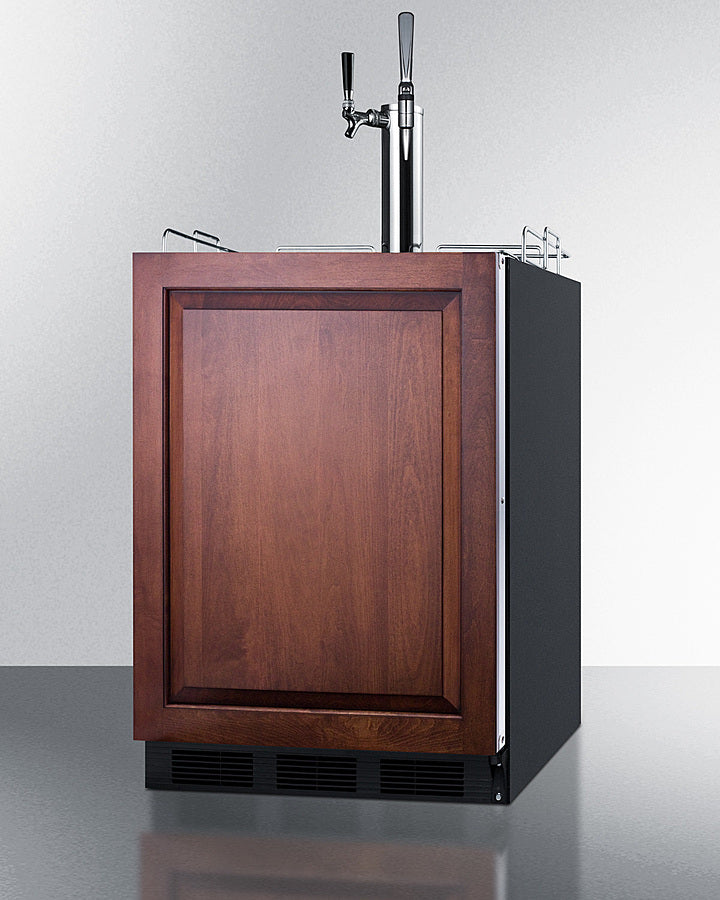

The SBC58BLBIADAIFCMTWIN is a dual tap coffee kegerator designed to serve both nitro-infused and regular cold brew coffee on tap. Sized at 32 inches high, it is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use.

This unit features an integrated stainless steel door frame designed to accept overlay panels, allowing you to create a custom look that blends into your cabinetry. We include a guard rail (ships uninstalled) and removable two-piece stainless steel drip tray for cleaner service.

This unit ships with a commercial grade tap kit with a dual tower that lets you serve both standard "flat" iced coffee and nitro-infused cold brew from two Cornelius style kegs. The stainless steel draft tower includes both a standard tap and stout style faucet to accommodate both styles of cold brew, as well as a regulator, nitrogen tank, and ball locks to connect to two Cornelius kegs.

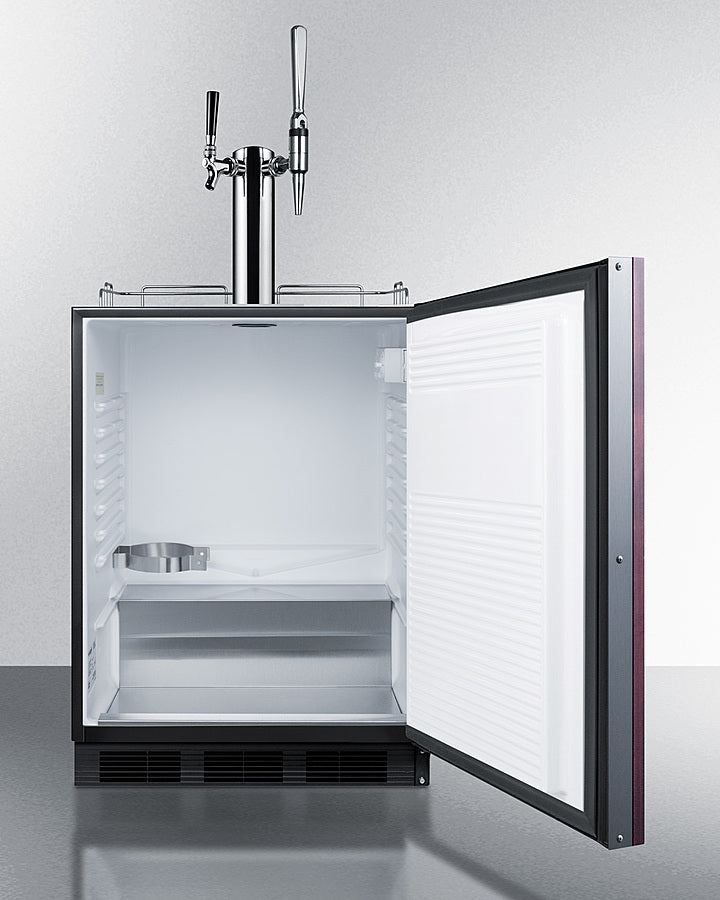

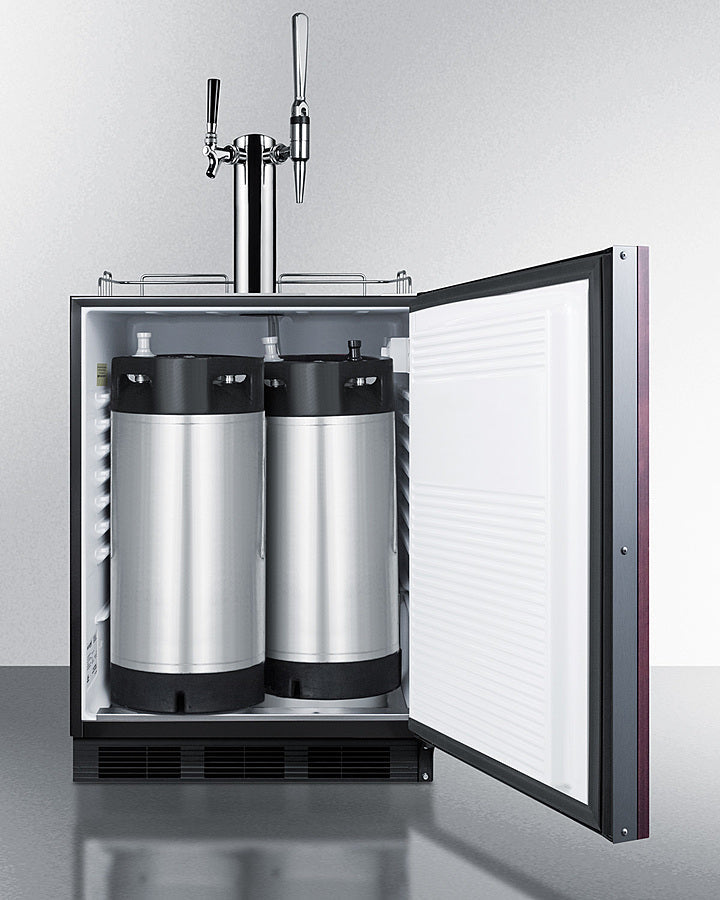

Inside, the SBC58BLBIADAIFCMTWIN is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs.

This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. The nitrogen tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth.

The SBC58BLBIADAIFCMTWIN is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with stainless steel or glass doors.

Features

• Dispenses both flat and nitro-infused coffee: Unique combination stout and standard tap system allows you to serve both flat iced cold brew and nitro-infused drafts from two Cornelius kegs
• ADA compliant height: Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
• Commercially approved: ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in food service settings
• Built-in capable: Front-breathing design allows fully recessed installation under counters
• Complete tap kit: Commercial grade tap kit includes a dual tap draft tower with a standard and stout tap, Nitrogen tank, dual gauge regulator, and connections for ball lock Cornelius kegs
• Dual tap system: Twin style draft tower allows you to serve from two Cornelius style kegs

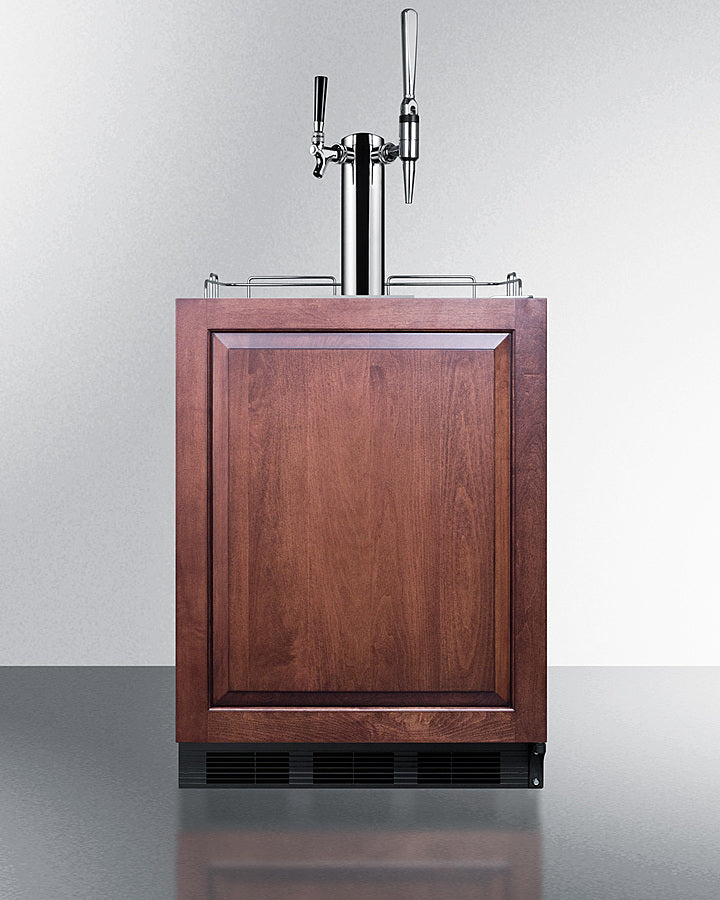

• Panel-ready door: Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
• Adjustable thermostat: Interior dial thermostat ensures easy temperature management
• Automatic defrost: No-frost operation for minimum user maintenance
• User-reversible door: Unit ships with a right hand door swing. For a left hand version, add option LHD upon order
• Stainless steel drip tray: Removable two-piece drip tray included for added convenience
• Stainless steel guard rail: Durable railing makes it easier to neaten service
• Interior light: Turn the light on when you need it and off when you're done with a convenient rocker switch
• Interior nitrogen tank holder: Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
• Stainless steel floor cover: Interior includes steel cover to protect the floor when loading kegs
• One piece interior liner: Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
• Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
• Fully finished cabinet: Allows the unit to be used freestanding
• 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

• Height of Cabinet: 32.0" (81 cm)
• Height to Hinge Cap: 32.25" (82 cm)
• Width: 23.63" (60 cm)
• Depth: 22.75" (58 cm)
• Depth with door at 90°: 45.0" (114 cm)
• Capacity: 5.5 cu.ft. (156 L)
• Defrost Type: Automatic
• Door: Panel-Ready
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Amps: 1.2
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 110.0 lbs. (50 kg)
• Shipping Weight: 120.0 lbs. (54 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101069678

Kegerator

• Door Swing: RHD
• Reversible: Factory Reversible
• Tap Kit: Yes
• Number of Taps: 2
• Thermostat Type: Dial
• Interior Light: Yes
• Fan Type: Exterior
• Refrigerant: R600a
• Refrigerant Amount: 0.64 oz.
• High Side PSI: 180.0
• Low Side PSI: 80.0
• Inter Height: 25.75" (65 cm)
• Interior Width: 21.0" (53 cm)
• Interior Depth: 17.75" (45 cm)
• Compressor Step Height: 6.5" (17 cm)
• Compressor Step Width: 21.0" (53 cm)
• Compressor Step Depth: 5.5" (14 cm)
• Temperature Range: 34º to 43ºF

Available Upgrades

Exterior

• LHD: Left hand door swing
• DT: Digital thermostat
• SSK

Manufacturer Resources

• Brochure
• Use and Care (Integrated Frame)
• Use and Care (Kegerators User Manual)
• Use and Care (Cold Brew Coffee Tap Kit)

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
