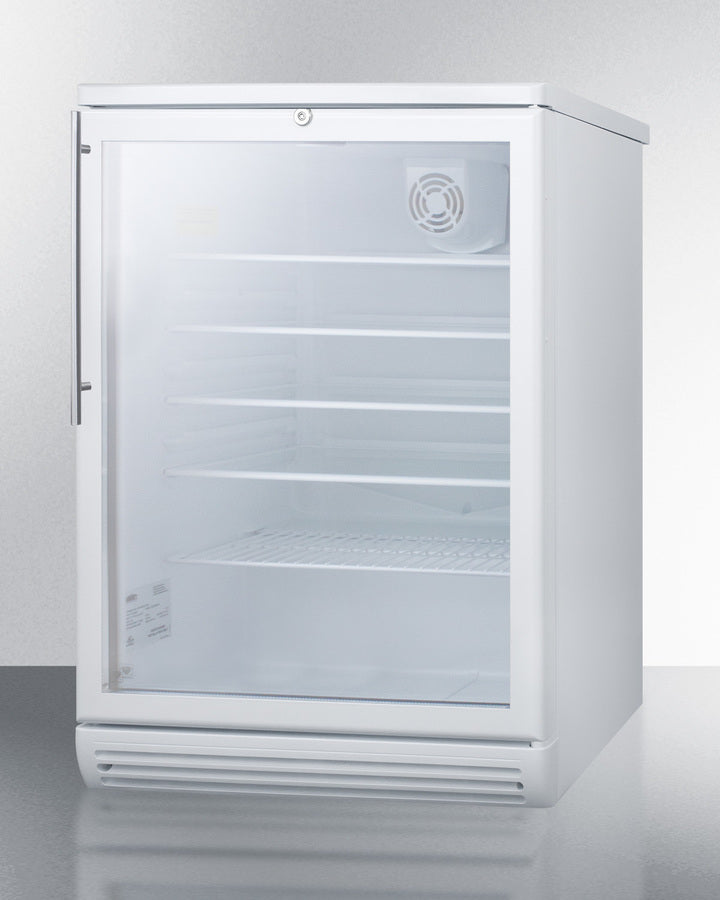

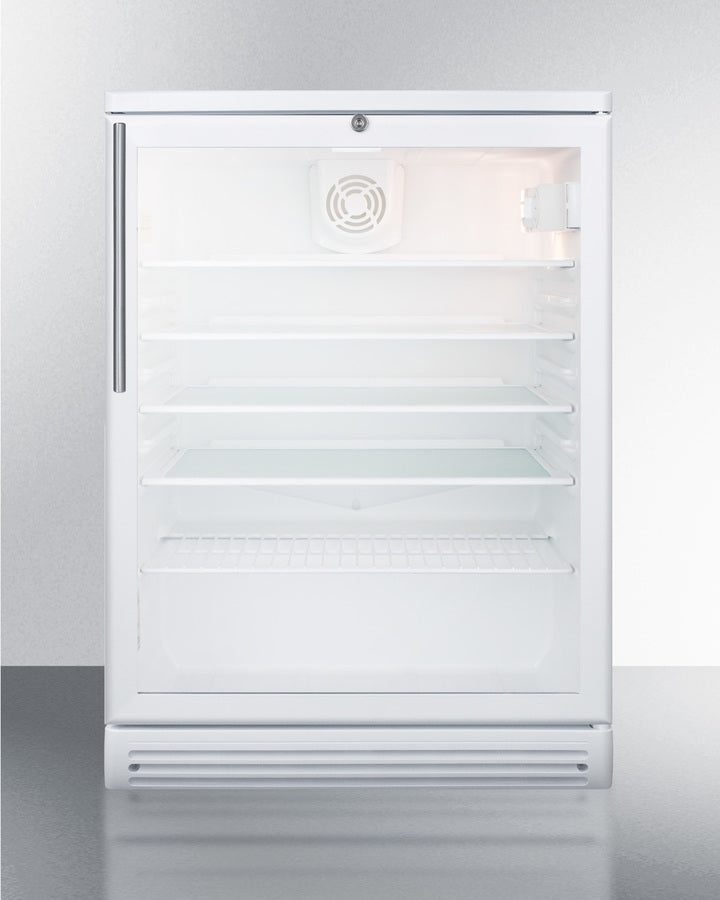

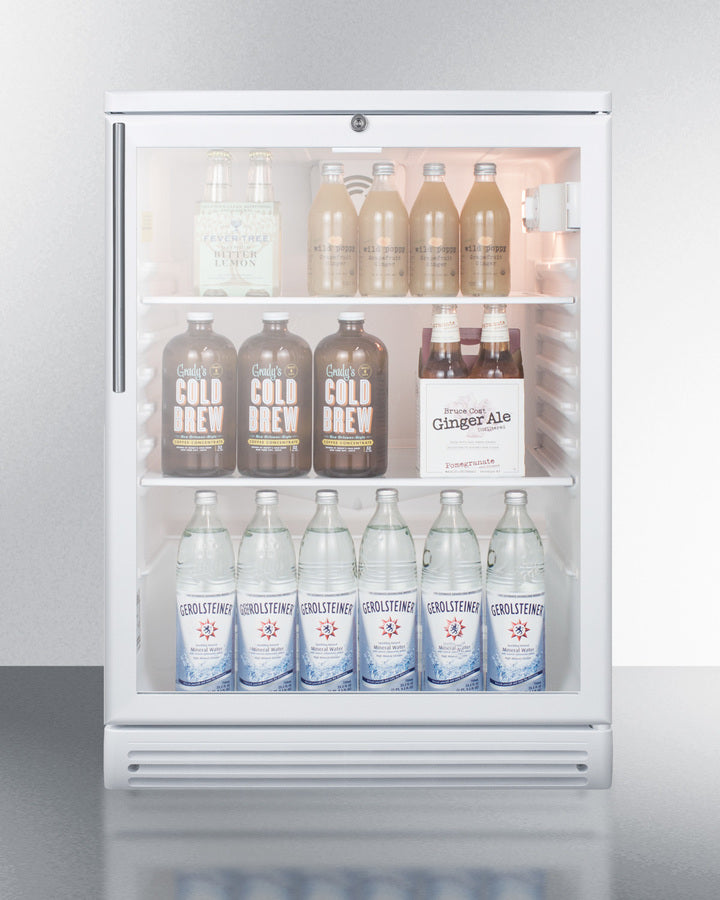

Summit 24" Wide Built-In Beverage Center with Thin Handle - SCR600GLBIHV

Summit 24" Wide Built-In Beverage Center with Thin Handle - SCR600GLBIHV

SUMMIT COMMERCIAL's SCR600GLBI Series features 24" wide beverage refrigerators designed and manufactured in Europe for built-in under-counter installation in commercial settings.

Sized with a convenient 24" footprint and generous 5.5 cu.ft. interior, the SCR600GLBIHV features a front-breathing design for built-in installation under counters, with a fully finished white cabinet that also allows freestanding use.

The door features double pane tempered glass for added protection, with a thin vertically mounted handle in brushed stainless steel. The factory-installed front lock is located towards the top of the door for easier access.

Inside, the SCR600GLBIHV includes four adjustable glass shelves for spill-proof storage and a half-sized wire shelf ideal for holding bottles in place. Automatic defrost ensures minimum user maintenance and a dial thermostat makes it simple to manage the temperature.

This unit features an interior light operated with an ON/OFF rocker switch and a white interior finish to ensure optimum product visibility. Our unique "hidden" evaporator is located in the rear wall to help protect the unit's system and maximize shelf space. An internal fan helps to ensure the interior is more evenly cooled from top to bottom.

The SCR600GLBIHV is ETL-S listed to NSF-7 commercial standards. For this unit sized at 32" for use under lower ADA compliant counters, see the SCR600GLBIADA series.

Features

• Commercially approved: ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
• Slim under-counter dimensions: Less than 24 inches wide to fit tight spaces
• Built-in capable: Front-breathing design allows you to install the unit under counters with minimum clearance
• Double pane tempered glass door: Heat resistant design provides clear display to promote impulse buys
• Professional handle: Vertically mounted thin handle (14mm) in brushed stainless steel matches many popular styles of cabinetry
• Factory installed lock: Keyed lock conveniently located towards the top of the door for added security (2 keys included)
• Automatic defrost: Reduced user maintenance with automatic defrost
• Internal fan: Fan-forced cooling helps to maintain a more evenly cooled interior
• White interior finish: Interior offers more visibility with a brighter look
• Adjustable glass shelves: Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
• Half-sized wire shelf: Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
• Interior light on rocker switch: Turn the light on when you need it and off when you're done with a convenient rocker switch
• Hidden evaporator: SUMMIT's original "hidden" evaporator is concealed in the wall for easier cleaning and more efficient cooling
• One piece interior liner: Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
• Adjustable thermostat: Dial thermostat for easy and intuitive temperature management
• Fully finished white cabinet: Allows the unit to be used freestanding
• 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

• Height of Cabinet: 33.5" (85 cm)
• Width: 23.63" (60 cm)
• Depth: 23.5" (60 cm)
• Depth with Handle: 25.5" (65 cm)
• Depth with door at 90°: 46.0" (117 cm)
• Capacity: 5.5 cu.ft. (156 L)
• Defrost Type: Automatic
• Door: Glass
• Cabinet: White
• US Electrical Safety: UL
• Canadian Electrical Safety: ULC
• Sanitation: ETL-S
• Amps: 1.8
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 100.0 lbs. (45 kg)
• Shipping Weight: 105.0 lbs. (48 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101064567

Refrigerator Features

• Door Swing: RHD
• Reversible: Factory Reversible
• Height Adjustable: 1
• Shelf Type: Glass
• Shelf Qty: 4
• Adjustable Shelves: Yes
• Thermostat Type: Dial
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 0.67oz.
• High Side PSI: 124.0
• Low Side PSI: 30.0
• Level Legs Qty: 4
• Interior Light: Yes

Dimensions

• Interior Height: 26.0" (66 cm)
• Interior Width: 20.75" (53 cm)
• Interior Depth: 17.5" (44 cm)
• Compressor Step Height: 6.0" (15 cm)
• Compressor Step Width: 20.75" (53 cm)
• Compressor Step Depth: 5.0" (13 cm)

Available Upgrades

Handle

• TB
• SH
• HV
• HH
• TBC Copper Towel Bar Handle Upgrade

Exterior

• PH: Probe Hole
• Legs to raise unit height
• DT: Digital thermostat
• CAS6 6" casters
• CAS3 3" casters
• Alarm/Thermometer
• Extra key
• SCD: Self-closing door
• LHD: Left hand door swing
• Latch for door
• SSK
• HG: Hospital grade cord
• TH: Installed thermometer
• ODA: Open door alarm
• DL2B: Factory installed NIST calibrated digital data logger (DDL)

Door

• T4 Door Tint
• T3 Door Tint
• T2 Door Tint

• T1 Door Tint
• T1S Door Tint
• STO: Step-To-Open Door Pedal

Interior

• LockBox24: Interior locking compartment

Manufacturer Resources

• Brochure
• Use and Care

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
