description


Summit 24" Wide Built-In All-Refrigerator ADA Compliant - AR5BS


SUMMIT offers the industry’s largest selection of ADA compliant built-in under-counter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations.

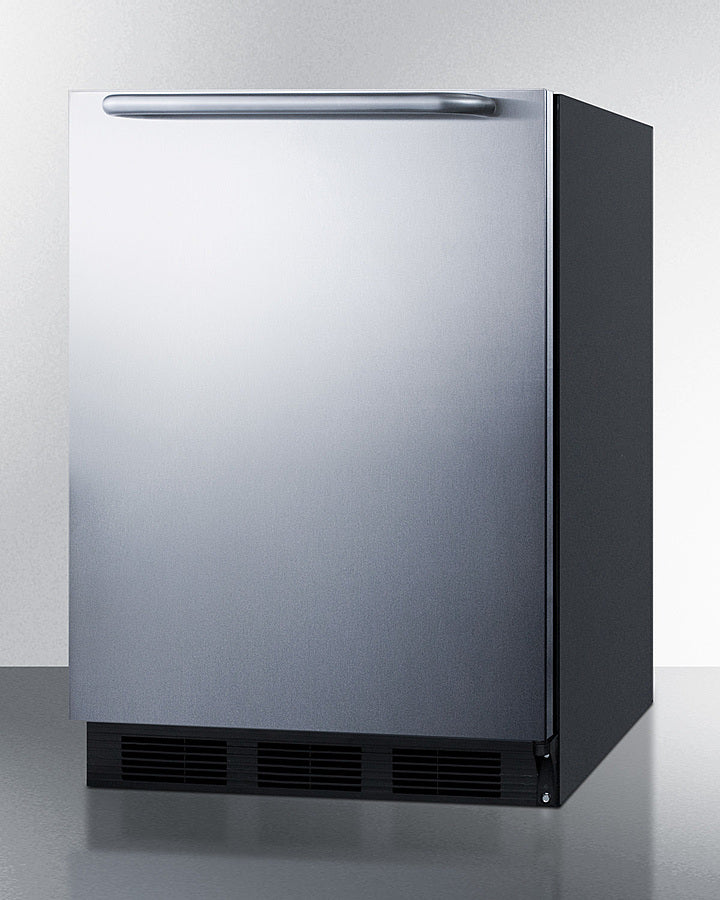

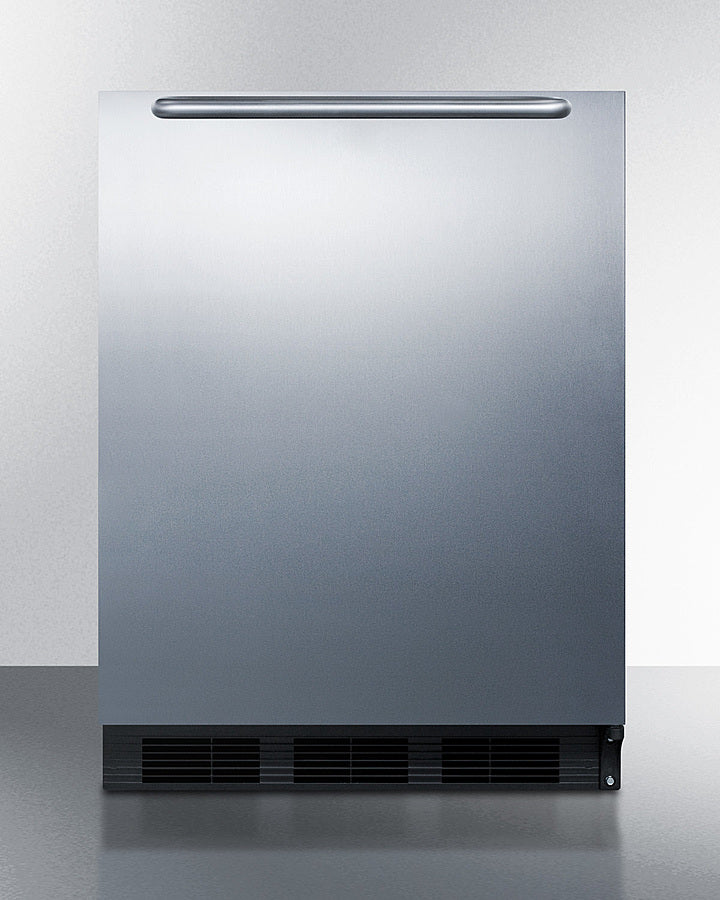

Sized with a 24” footprint and 32” height, the AR5BS is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish and reversible stainless steel wrapped door. It includes a curved towel bar style handle mounted horizontally for a modern look.

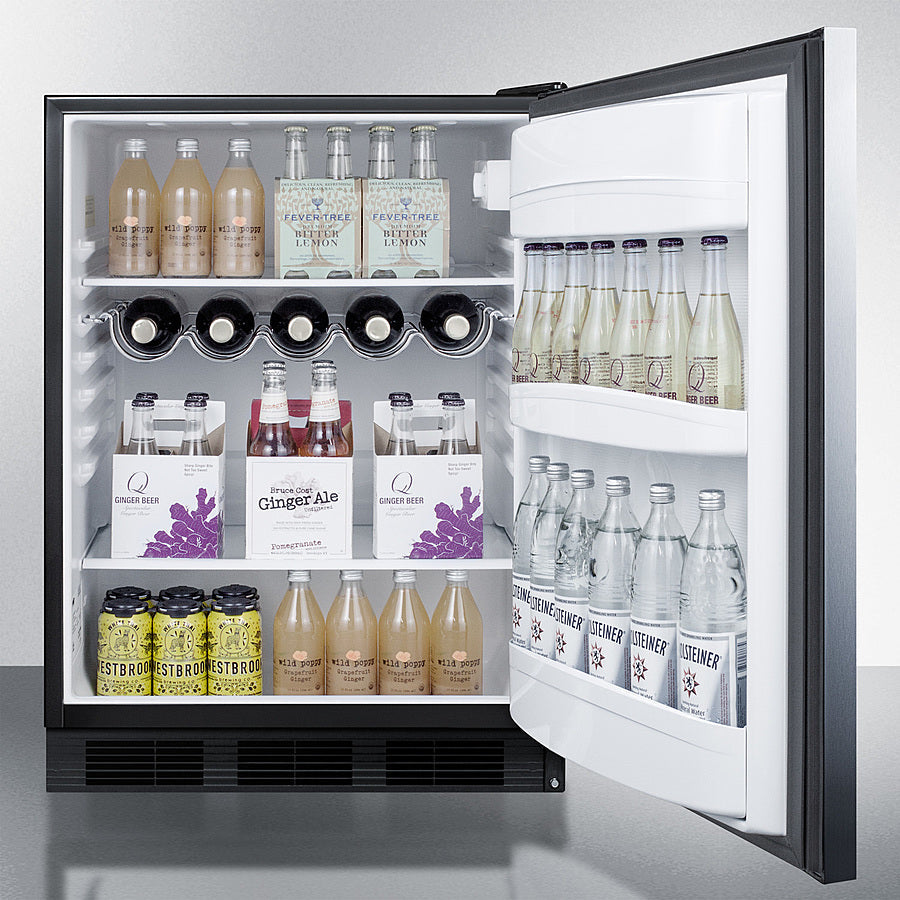

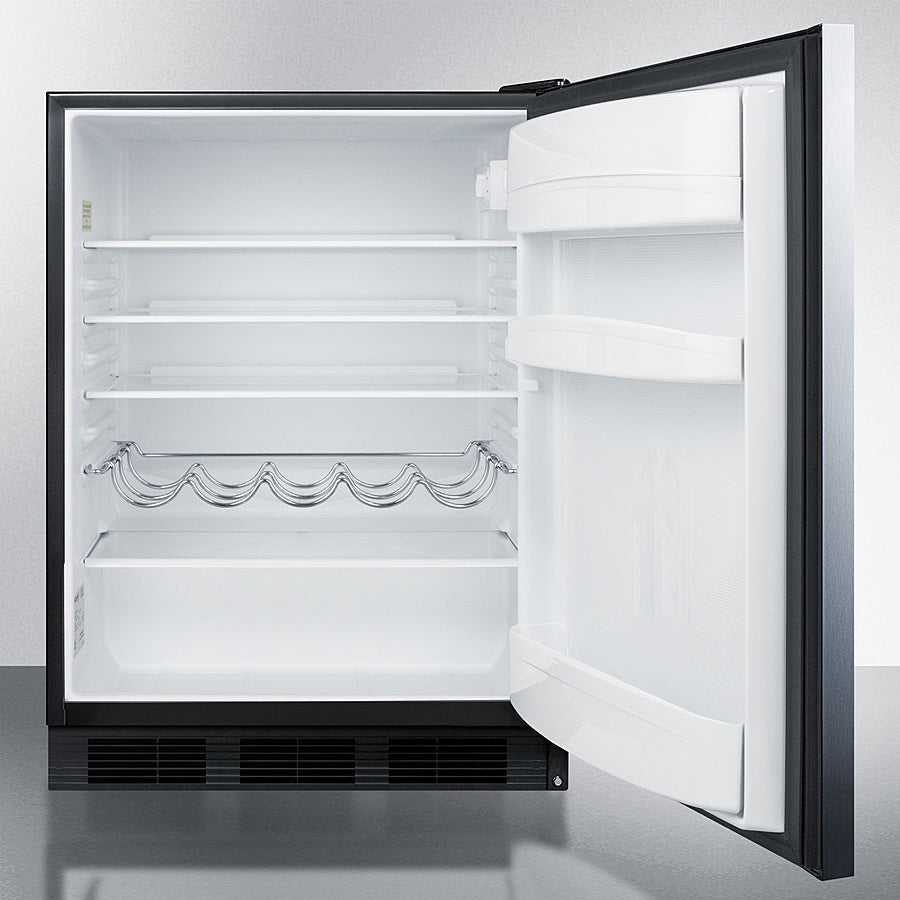

Inside, the AR5BS utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place.

Summit 24" Wide Built-In All-Refrigerator ADA Compliant

The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BS features Summit's intuitive dial thermostat for easy temperature management.

Designed and constructed in Europe, the AR5BS brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. For a panel-ready version of this unit, see the AR5IF.

Features

  • ADA compliant: 32" height to fit under lower ADA compliant counters
  • Slim under-counter dimensions: Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
  • Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
  • Stainless steel wrapped door: Durable design with lasting elegance

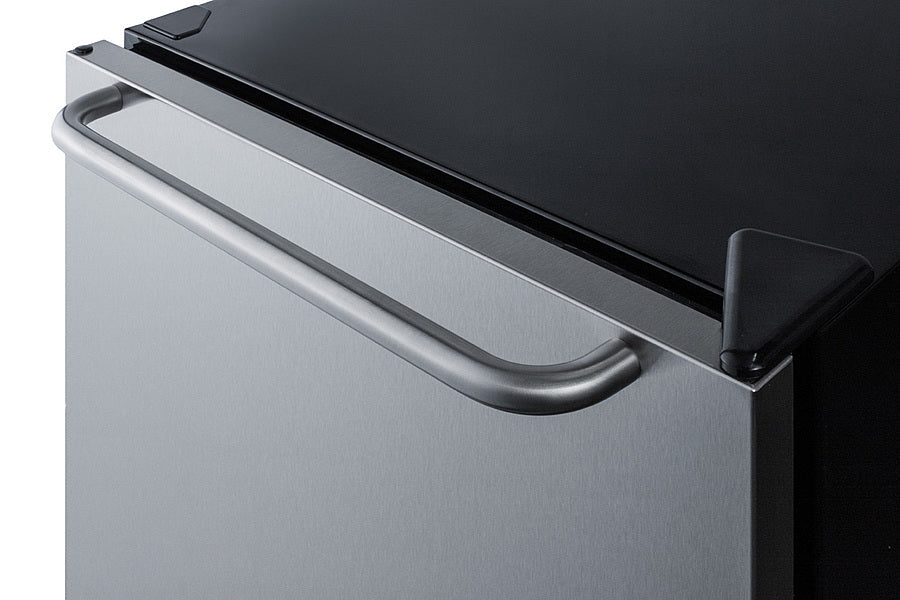

  • Professional towel bar style handle: Brushed stainless steel handle is mounted horizontally for an attractive look
  • Automatic defrost: Reduced maintenance with auto defrost system
  • Adjustable glass shelves: Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
  • Door shelves: Store tall bottles and condiments right on the door for convenient access
  • Wine shelf: Removable scalloped wine shelf is included to store champagne and wine bottles
  • Interior light: Automatically illuminates when you open the door
  • One piece interior liner: Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
  • Hidden evaporator: Cold wall design with hidden evaporator creates a seamless, easy to clean interior

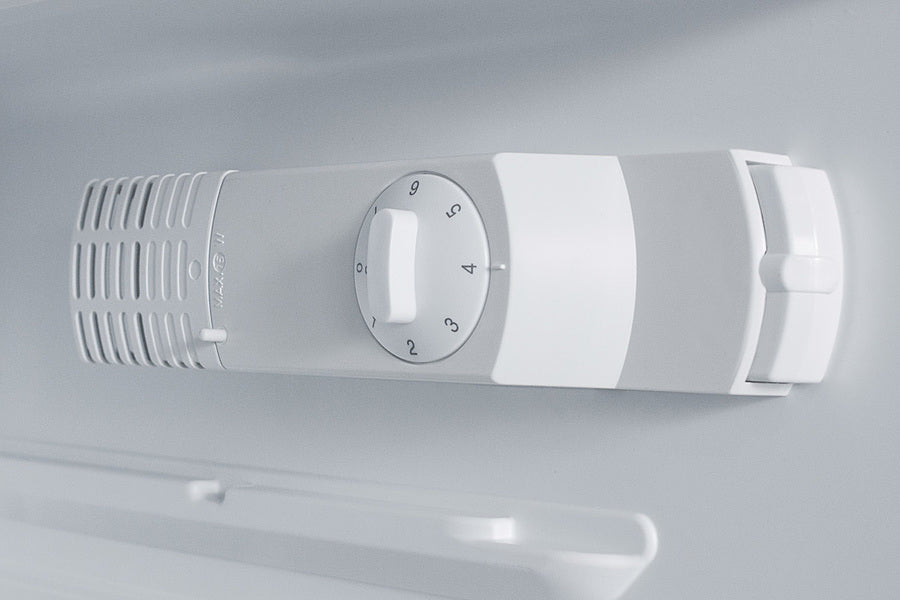

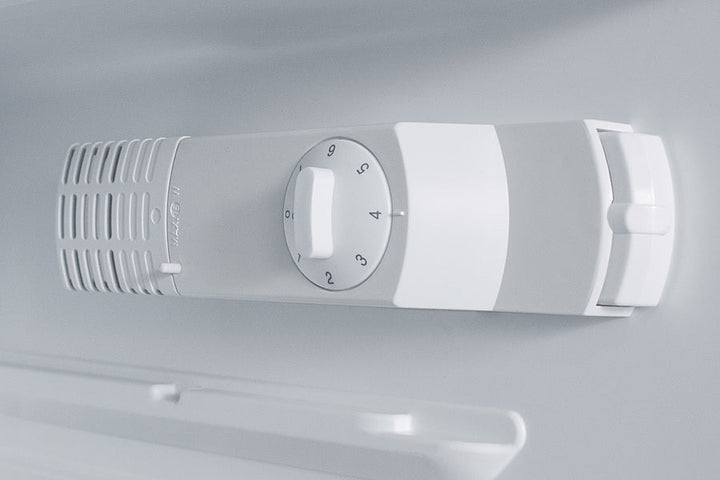

  • Adjustable dial thermostat: Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management
  • Reversible door: User-reversible door swing for added flexibility
  • CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Fully finished black cabinet: Allows the unit to be used freestanding
  • 100% CFC free: Environmentally friendly design without ozone-damaging chemicals

Specifications

Overview

  • Height of Cabinet: 32.0" (81 cm)
  • Height to Hinge Cap: 32.25" (82 cm)
  • Width: 23.63" (60 cm)
  • Depth: 23.0" (58 cm)
  • Depth with door at 90°: 45.38" (115 cm)
  • Capacity: 5.5 cu.ft. (156 L)
  • Defrost Type: Automatic
  • Door: Stainless Steel
  • Cabinet: Black
  • US Electrical Safety: ETL
  • Canadian Electrical Safety: ETL-C
  • Energy Usage/Year: 307.0kWh/year
  • Amps: 1.4
  • Voltage/Frequency: 115 V AC/60 Hz
  • Weight: 100.0 lbs. (45 kg)
  • Shipping Weight: 105.0 lbs. (48 kg)
  • Parts & Labor Warranty: 1 Year
  • Compressor Warranty: 5 Years
  • UPC: 761101068268

Refrigerator Features

  • Door Swing: RHD
  • Reversible: Yes
  • Shelf Type: Glass
  • Shelf Qty: 3
  • Full Door Shelf Qty: 3
  • Adjustable Shelves: Yes
  • Wine Bottle Shelves: Yes
  • Thermostat Type: Dial
  • Fan Type: Exterior
  • Refrigerant Type: R600a
  • Refrigerant Amount: 0.64oz.
  • High Side PSI: 180.0
  • Low Side PSI: 80.0
  • Interior Light: Yes

Dimensions

  • Interior Height: 26.25" (67 cm)
  • Interior Width: 21.0" (53 cm)
  • Interior Depth: 18.0" (46 cm)
  • Compressor Step Height: 5.5" (14 cm)
  • Compressor Step Width: 21.0" (53 cm)
  • Compressor Step Depth: 6.0" (15 cm)
Summit 24" Wide Built-In All-Refrigerator ADA Compliant

Available Upgrades

Exterior

  • SSK
  • SS Hinges
  • Alarm
  • Latch for door
  • DL2B: Factory installed NIST calibrated digital data logger (DDL)
  • HG: Hospital grade cord
  • LHD: Left hand door swing
  • ODA: Open door alarm
  • SCD: Self-closing door
  • DT: Digital thermostat
  • PH: Probe Hole
  • TT: Installed thermometer

Interior

  • FC: Internal Fan
  • FCGP: Internal fan with gel packs

Lock

  • AC Keypad
  • KEYPAD

Handle

  • TBC Copper Towel Bar Handle Upgrade

Manufacturer Resources



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
