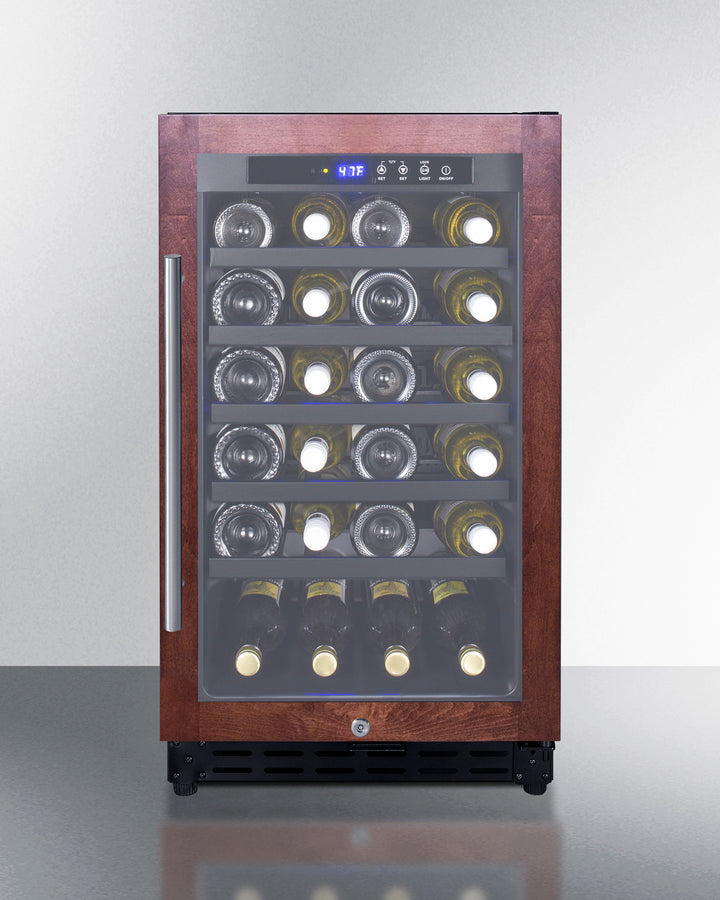

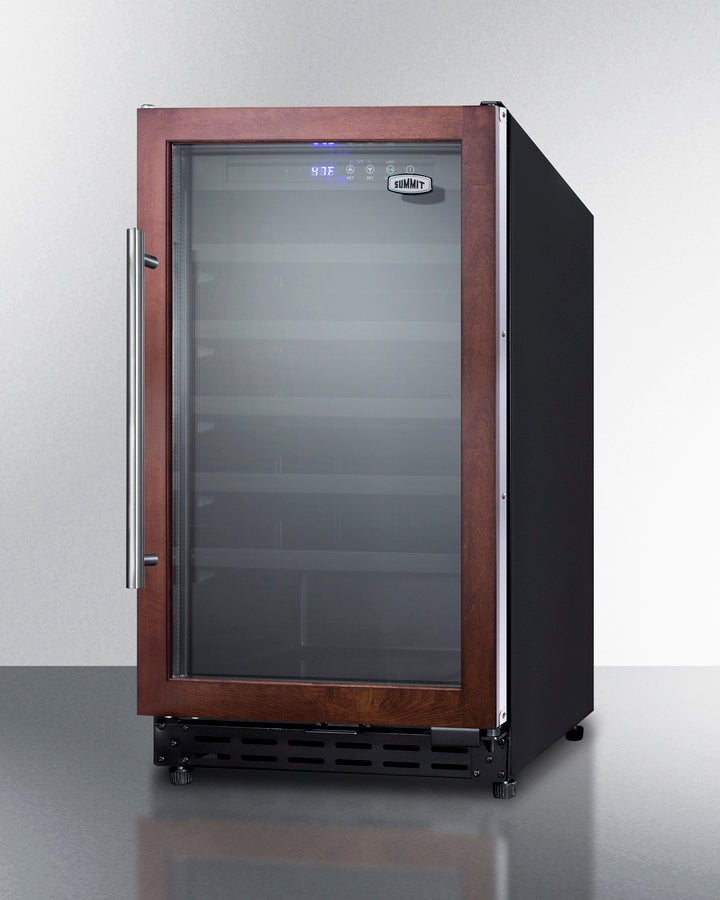

Summit 18" Wide Undercounter Wine Cellar (Panel Not Included) - SWC1840BPNRADA
SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.
The SWC1840BPNRADA is a 32" high wine cellar designed for built-in or freestanding use under lower ADA compliant counters, with a unique 18" width. The glass door features a panel-ready stainless steel door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness). NOTE: this unit ships with a right hand door swing. For a left hand version, add option LHD.

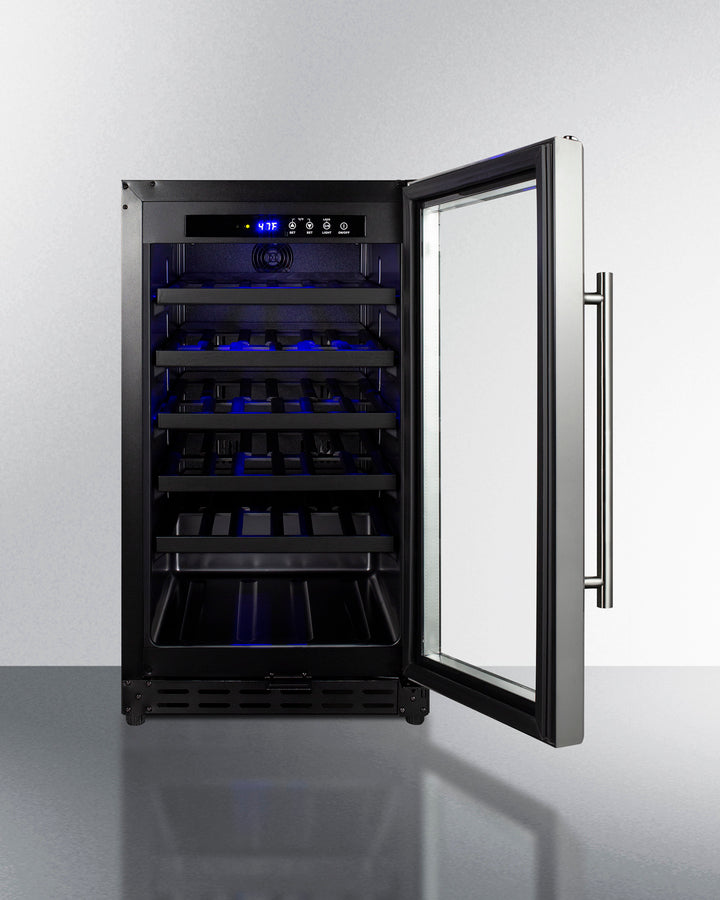

Inside, this auto defrost wine cellar can store up to 34 Bordeaux or Burgundy-style bottles, with a slotted floor that can also accommodate champagne if needed. The slide-out wooden shelves come in a deep red color. Recessed LED lighting offers an elegant view of the items, while the digital thermostat ensures easy temperature management.
With its slim fit and convenient design, the SWC1840BPNRADA makes an attractive addition to any room. The SWC1840BPNRADA is also available in a standard counter height (see the SWC1840BPNR) and can be paired with our matching beverage center for a complete set, see the SCR1841BPNRADA.
Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
Features
- Commercially approved: ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
- ADA compliant: 32" height is designed to fit under lower ADA compliant counters
- Built-in capable: Make the best use of space by installing your appliance under the counter
- 34 bottle capacity: Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles

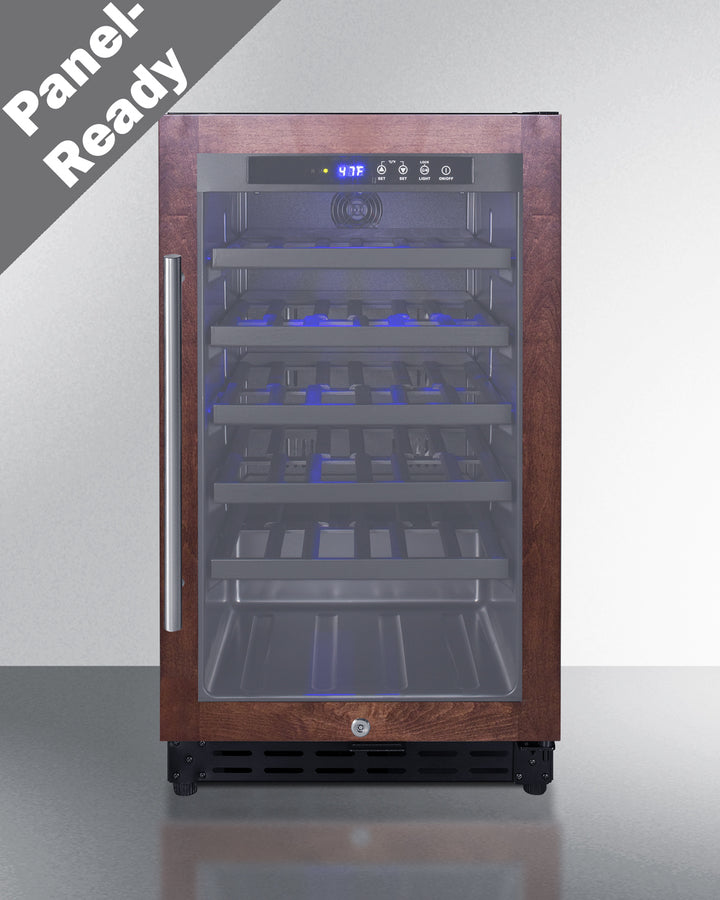

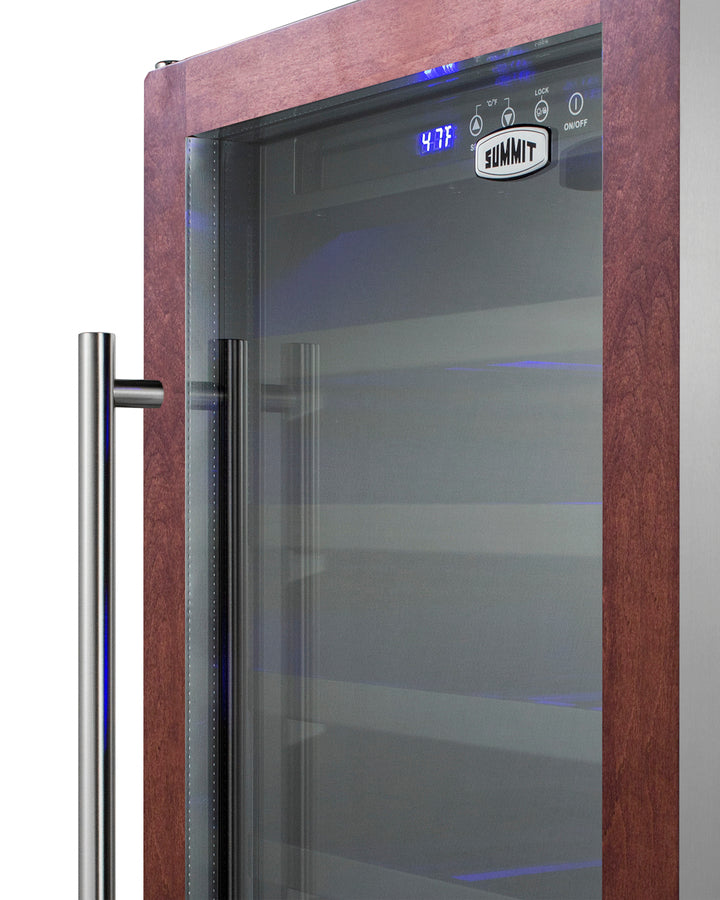

- Panel-ready door trim: Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)
- Glass door: Double pane tempered glass to provide an elegant display with added protection
- Factory installed lock: Keyed security on the door
- Digital thermostat: Electronic controls for precise temperature management.
- Digital display: Temperature readout can be shown in Celsius or Fahrenheit
- LED lighting: Gentle illumination with an on/off switch
- Automatic defrost: Reduced maintenance with the convenience of auto defrost
- Wooden shelves: 5 shelves offer the perfect storage for wine bottles in a classic wooden finish
- Professional handle: Stainless steel look for added elegance
- Flush back: Space saving design
- Fully finished black cabinet: Allows the unit to be used freestanding
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- 100% CFC Free:Environmentally friendly design with no ozone-damaging chemicals
Specifications
Overview
- Height of Cabinet: 31.38" (80 cm)
- Width: 17.75" (45 cm)
- Depth: 23.5" (60 cm)
- Depth with door at 90°: 39.75" (101 cm)
- Capacity: 3.3 cu.ft. (93 L)
- Bottles: 34 bottles
- Defrost Type: Automatic
- Door: Glass/Panel-Ready Frame
- Cabinet: Black
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Sanitation: ETL-S
- Amps: 1.25
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 95.0 lbs. (43 kg)
- Shipping Weight: 105.0 lbs. (48 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101073705
Wine Cellar
- Number of Zones: 1
- Door Swing: RHD
- Reversible Factory: Reversible
- Adjustable Shelves: Yes
- Shelf Type: Wood
- Shelf Qty: 5
- Thermostat Type: Digital
- Interior Light: Yes
- Fan Type: Interior and Exterior
- Refrigerant Type: R600a
- Refrigerant Amount: 1.06 oz.
- High Side PSI: 150.0
- Low Side PSI: 50.0
- Level Legs: 4
- Temperature Range: 41º to 68ºF
Available Upgrades
Exterior
- LHD - Left hand door swing
- SSK - Stainless steel kickplate
Door
- T1 Door Tint
- T1S Door Tint
- T2 Door Tint
- T3 Door Tint
- T4 Door Tint
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
