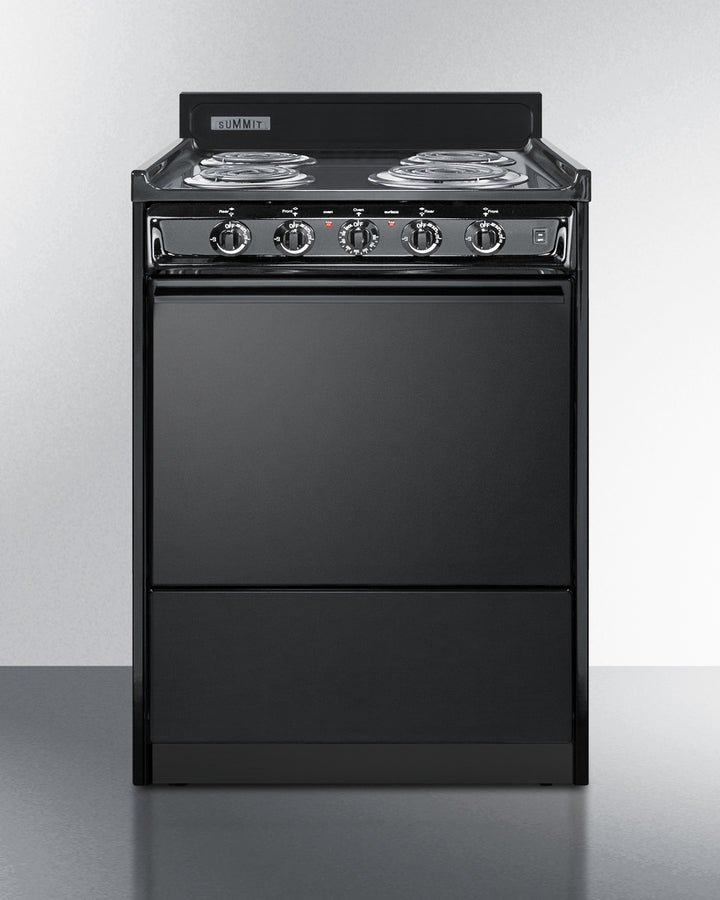

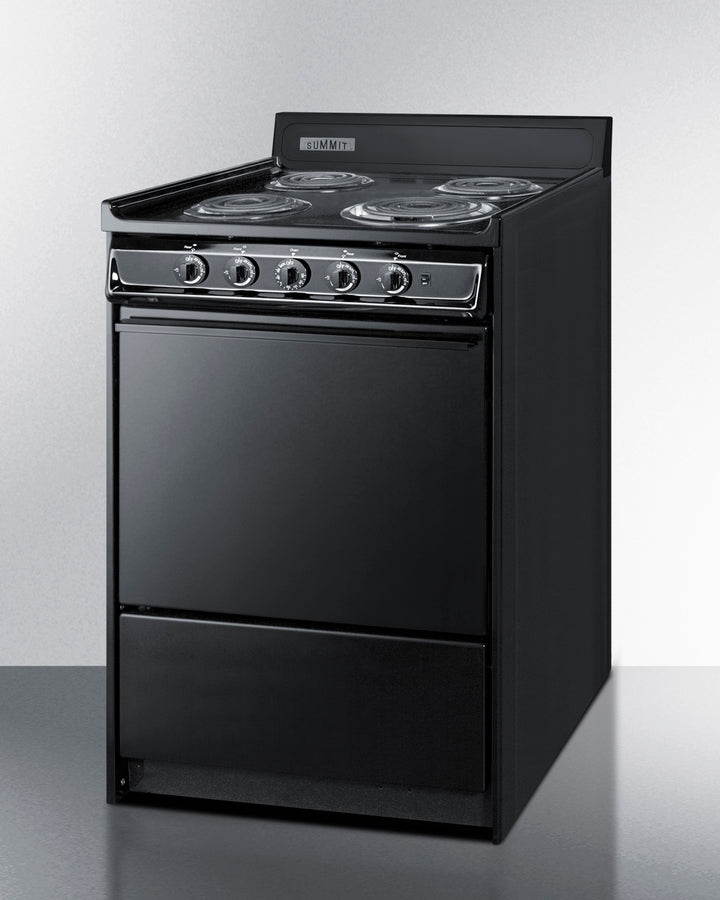

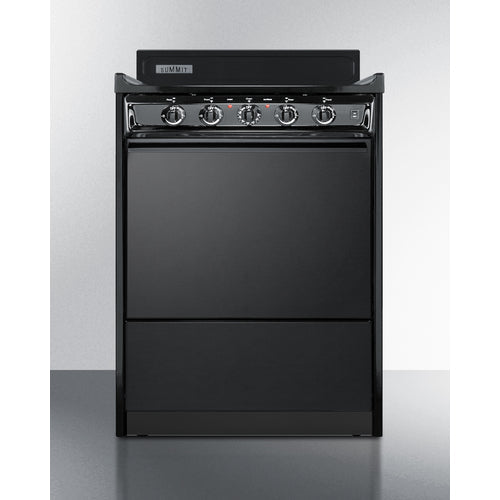

Summit 24" Wide Electric Coil Range - TEM610C
Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

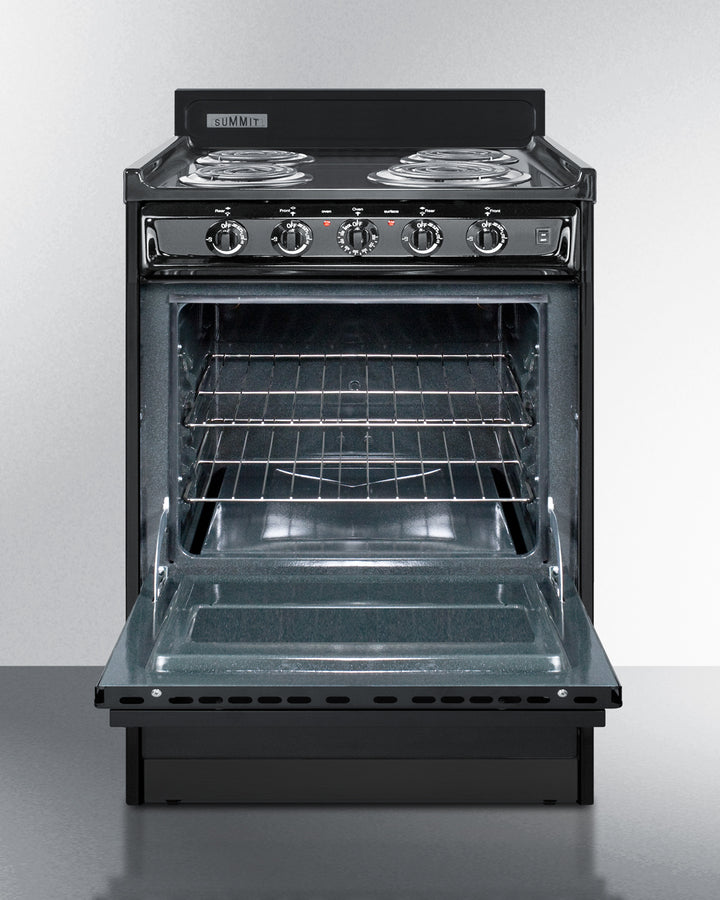

The TEM610C is an apartment-sized 220V electric range sized at just 24" wide, with a generous 2.92 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.
Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.
The TEM610C comes in a jet black finish to suit any kitchen setting. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician).
With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 30", and 36" wide fits.
Features
- Made in the USA: Designed and constructed domestically
- Slim 24 inch width: Apartment-sized width offers all the functionality you need in a smaller footprint
- 24 inch depth: Shallower fit is ideal for L-shaped and galley kitchens
- Storage compartment: Keep pots and pans inside the lower compartment for easy space-saving storage
- Four coil elements: Three standard 6" and one large 8" element
- Safety burners with low wattage outputs: Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
- Chrome drip pans: Each element includes a removable chrome pan for easier cleaning
- Waist-high broiler: Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
- Adjustable oven racks: Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- Recessed oven door: Smart design limits the depth and protects adjacent cabinets
- Porcelain and steel construction: Solid construction built to hold up to everyday use
- Removable oven door and range top: Allows for easier cleaning as needed
- Upfront controls: All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
- Push-to-turn burner knobs: Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Indicator lights: Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Broiler tray included: Two-piece porcelain broiler tray with grease well
- Anti-tip bracket: Included for user installation to help prevent tipping
- Cord not included: Compatible with standard 40 amp 3 or 4-wire range cords
- ADA compliant: Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
Specifications
Overview
- Height of Cabinet: 40.0" (102 cm)
- Width: 24.0" (61 cm)
- Depth: 24.0" (61 cm)
- Door: Black
- Cabinet: Black
- US Electrical Safety: CSA
- Voltage/Frequency: 220 V AC/60 Hz
- Weight: 140.0 lbs. (64 kg)
- Shipping Weight: 145.0 lbs. (66 kg)
- Parts & Labor Warranty: 1 Year
- UPC: 761101018232
Electric Range
- Oven Capacity: 2.92 cu.ft. (83 L)
- Cooktop Surface: Porcelain
- Element Type: Coils
- Number of Elements: 4
- Element #1 Size: 6.0" (15 cm)
- Element #1 Wattage: 675.0
- Element #2 Size: 6.0" (15 cm)
- Element #2 Wattage: 675.0
- Element #3 Size: 6.0" (15 cm)
- Element #3 Wattage: 675.0
- Element #4 Size: 8.0" (20 cm)
- Element #4 Wattage: 950.0
- Burner Controls: Dial
- Oven Controls: Dial
- Backguard: Yes
- Cleaning Type: Manual
- Oven Rack Qty: 2
- Oven Interior Height: 14.0" (36 cm)
- Oven Interior Width: 19.0" (48 cm)
- Oven Interior Depth: 19.0" (48 cm)
- Storage Compartment: Yes
- Broiler Location Inside: Oven
- Oven Door: White
Available Upgrades
Interior
- Heat Sense - Temperature sensors to prevent coils from reaching flashpoint temperature
- Canadian Range Conversion
Exterior
- RangeCord3P - Installed 3-pronged cord
- RangeCord4P - Installed 4-pronged cord
Manufacturer Resources
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
